Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft
Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft - 1 Input Device - 1 Output Device - 125 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
| $222.56 | Retail $321.60 |
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
95033
Item:
B126-1A1-POC
UPC Code:
037332193117
Our Part #
4A2721
Condition
New
$222.56EA
$321.60
$321.60
Availability
Only 99 Left In Stock
Product description
Tripp Lite HDMI Over Cat5/Cat6 Active Extender Kit Audio Video 1080p 125ft - 1 Input Device - 1 Output Device - 125 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
1 Input Device - 1 Output Device - 125 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
Specifications
UPC Alternates
037332193117 803929887260
Brand Name
Tripp Lite
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Form factor
Pole-mountable
Form factor
Wall Mountable
Graphics Modes
Full HD
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B126-1A1-POC
Manufacturer Website Address
http://www.tripplite.com
Marketing Information

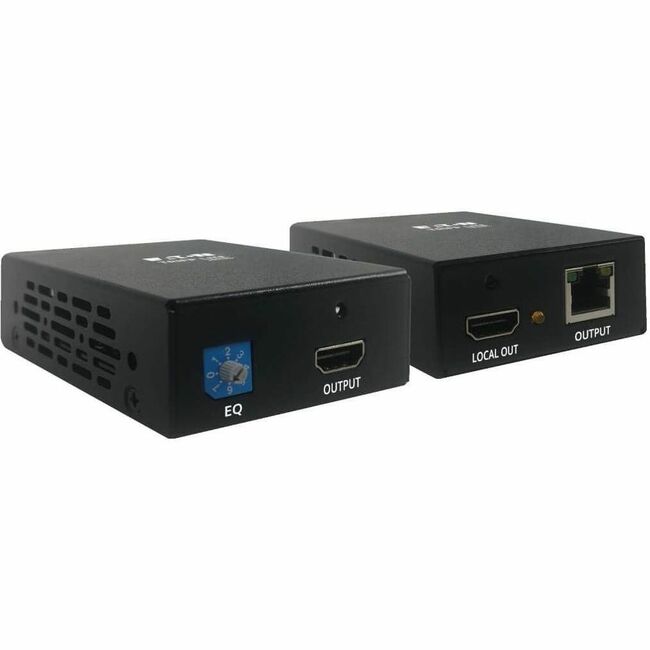

The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector monitor or television. The kit is ideal for digital signs trade shows classrooms churches offices retail settings and other applications where the source is located farther than conventional cables allow.
HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source such as a Blu-ray™ player to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable so no external power supply on the display side is needed.
The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video the B126-1A1-POC delivers full rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source such as a Blu-ray™ player to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable so no external power supply on the display side is needed.
The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video the B126-1A1-POC delivers full rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Extends High-Definition Signals
- Extends a 1080p (@ 60 Hz) signal up to 125 ft.
- Transmitter and receiver connect with one Cat5e/6/6a cable (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor
Easy to Set Up and Use
- Plug-and-play engineering-no software or drivers to download and install
- Works with all operating systems and HDMI video sources
- Units connect quickly to monitors with HDMI cable such as Tripp Lite's P569-Series
- LEDs indicate at a glance when the units are receiving power and an HDMI signal
- Included mounting hardware lets you install the units on a wall rack or pole
TAA Compliant
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Maximum Operating Distance
125 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of HDMI Inputs
1
Number of Network (RJ-45) Ports
2
Package Contents
- Transmitter Unit
- Receiver Unit
- Screwdriver for Adjusting Equalization
- External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V 50/60 Hz 0.5A; Output: 5V 2A)
- Mounting Hardware
- Owner's Manual
Product Name
B126-1A1-POC Video Extender Transmitter/Receiver
Product Type
Video Extender Transmitter/Receiver
Twisted Pair Cable Standard
Category 6a
