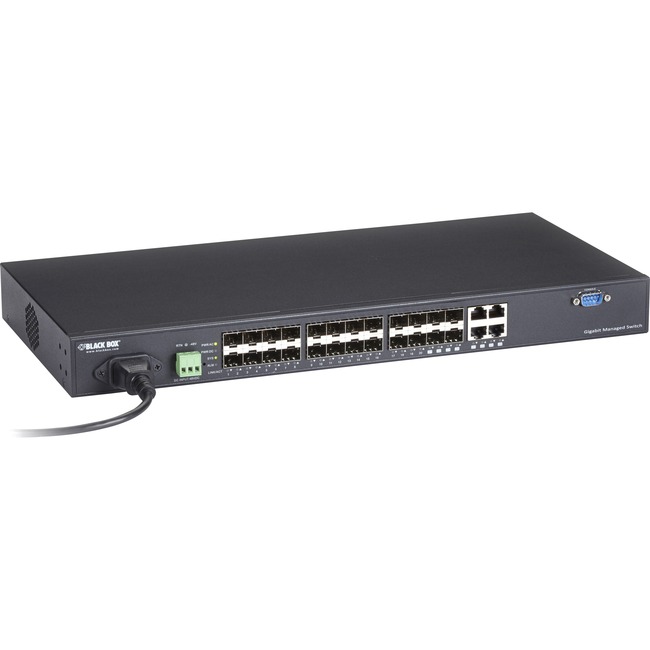

Black Box SFP Gigabit Managed Fiber Switch - 24-Port
Black Box SFP Gigabit Managed Fiber Switch - 24-Port - 4 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 24 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - 1 Year Limited Warranty
| $864.48 | Retail $979.95 |
- Provides twenty 100/1000-Mbps SFP fiber ports and four dual-media 100/1000-Mbps RJ45/SFP ports
- Add SFPs when required to expand the network
- Superior manageability, security, QoS, and performance
- Bundle multiple ports for higher bandwidth with Link Aggregate Control Protocol aggregation
- Programmable QoS classification and prioritization
- Robust security with VLAN capabilities
- OAM and CFM for easy set-up and management
- Manage via the Web or Command Line"
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
95441
Item:
LGB5124A-R2
UPC Code:
818287213668
Our Part #
43222612
Condition
New
$864.48EA
$979.95
$979.95
Availability
Only 24 Left In Stock
Product description
Black Box SFP Gigabit Managed Fiber Switch - 24-Port - 4 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 24 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - 1 Year Limited Warranty
4 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - Modular - 24 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - 1 Year Limited Warranty
Specifications
Number of SFP Slots
24
Number of Total Expansion Slots
28
Stack Port
No
Total Number of Network Ports
4
UPC Alternates
818287213668 822088125648 842024467328
Brand Name
Black Box
Country of origin
Taiwan
Depth
8.3"
Environmental Certification
WEEE
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP
Frequency
60 Hz
Frequency
50 Hz
Height
1.7"
Input voltage
120 V AC
Input voltage
230 V AC
Layer Supported
2
Limited Warranty
1 Year
Manageable
Yes
Manufacturer
Black Box Corporation
Manufacturer Part Number
LGB5124A-R2
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
This advanced fully-manageable Layer Dual switch gives you networking versatility. It features 24 high-speed fiber ports: (20) 100-/1000-Mbps SFP fiber ports and (4) dual-media 100-/1000-Mbps SFP/twisted-pair ports.
This all fiber switch gives you the flexibility to select a variety of ranges with SFP transceivers.
Advanced functions in an economical package.
This switch offers advanced switching and security features normally found in more expensive switches. You'll get extensive management capabilities greater bandwidth control and QoS for switching in VoIP and other real-time high-performance applications.
Pack up the trunk.
To provide more bandwidth to a specific application or segment combine ports using the switch's 802.3ad Link Aggregate Control Protocol (LACP) capabilities. With this bandwidth aggregation feature the combined ports create a multilink trunk for load sharing. The switch supports 12 groups with 8 ports per group.
High-level service.
The switch offers extensive Quality of Service support including prioritization classification scheduling rate limitations and more. The switch also supports eight hardware queues.
Safe and secure.
Your network is safe with this switch. It also offers MAC address filtering and VLAN capabilities so you can segregate networks.
Multiple management options.
Monitor configure and control the switch via its RS-232 serial port or through Ethernet using CLI or Web-based management.
SFPs
For the SFP slots order SFP modules such as the 850-nm Multimode Gigabit SFP Module (LFP411) and 1310-nm Single-mode Gigabit SFP Module (LFP412). For information on SFP module compatibility contact our FREE Tech Support.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X
Networking standards
IEEE 802.3ad
Port/Expansion Slot Details
4 x Gigabit Ethernet TP/SFP Combo
Port/Expansion Slot Details
24 x Gigabit Ethernet Expansion Slot
Power source
Power Supply
Product Name
SFP Gigabit Managed Fiber Switch - 24-Port
Product Type
Ethernet Switch
Weight (Approximate)
6.80 lb
Width
17.4"
