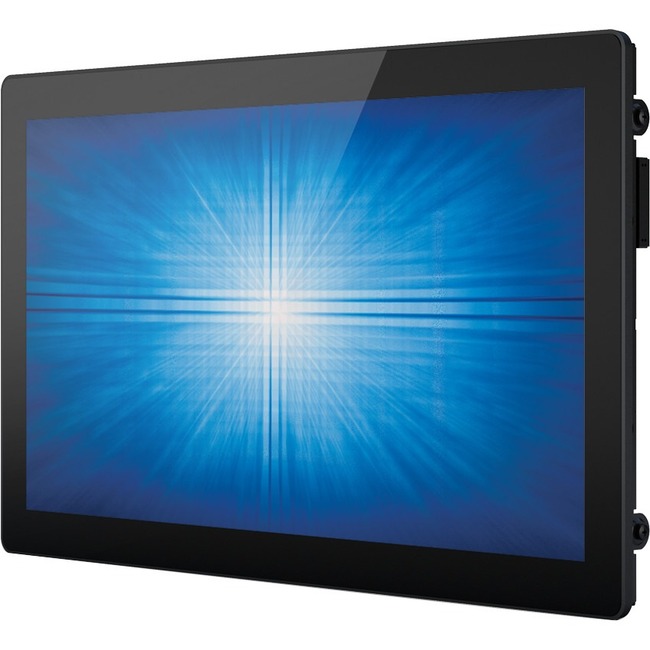

Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms
Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms - 20" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 3,000:1 - 250 Nit, 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - T�V, RoHS, China RoHS, WEEE - 3 Year
| $614.65 | Retail $656.00 |
- The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
- The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 3,000:1 contrast ratio actualizes fantastic hues for an exceptional visual experience
- Enjoy crisp content and energetic hues with the 250 Nit brightness
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
By:
Elo
Manufacturer:
Elo Touch Solutions, Inc
Product ID:
95923
Item:
E331214
UPC Code:
815335026010
Our Part #
3GV005
Condition
New
$614.65EA
$656.00
$656.00
Availability
Only 1 Left In Stock
Product description
Elo 2094L 19.5" Open-frame LCD Touchscreen Monitor - 16:9 - 20 ms - 20" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 3,000:1 - 250 Nit, 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - T�V, RoHS, China RoHS, WEEE - 3 Year
20" Class - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 3,000:1 - 250 Nit, 225 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - T�V, RoHS, China RoHS, WEEE - 3 Year
Specifications
Curved Screen
No
DisplayPort Version
1.1a
HDMI Version
1.3
Number of Simultaneous Touchpoints
10
Panel Technology
Thin Film Transistor (TFT)
Touchscreen Type
TouchPro Projected Capacitive
UPC Alternates
815335026010 818213931420 818214879066 818253878266
Vertical Frequency
50 Hz to 75 Hz
VESA Mount Standard
100 x 100
Aspect ratio
16:9
Backlight Technology
LED
Brand Name
Elo
Brightness
225 Nit
Brightness
250 Nit
Color Supported
16.7 Million Colors
Contrast Ratio
3000:1
Depth
1.6"
Energy Consumption per Year
29 kWh
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmental Certification
T�V
Environmental Certification
China RoHS
Environmentally Friendly
Yes
Features
On-screen Display (OSD)
Height
11.2"
Horizontal Frequency
30 kHz to 82 kHz
Horizontal Viewing Angle
178°
Limited Warranty
3 Year
Manufacturer
Elo Touch Solutions Inc
Manufacturer Part Number
E331214
Manufacturer Website Address
http://www.elotouch.com
Marketing Information
The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art energy-saving LED backlight using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 2094L provides stable drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel the open-frame touchscreen instantly grabs and holds the users' attention for kiosks casino and amusement retail self-service and industrial automation environments.
Easily integrated.The touchscreen is sealed against dirt dust and liquids which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.Available with a choice of industry-leading touch technologies in single- or multi-touch technology including IntelliTouch® single-touch surface acoustic wave (SAW) and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50000 MTBF.
Other features.- Viewing angle of 178° (h) x 178° (v) for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Maximum resolution
1920 x 1080
Mean time between failures (MTBF)
5.7 Year
Mount Type
Flush Mount
Off-Mode Power Consumption
500 mW
Operating Power Consumption
20 W
Package Contents
- 2094L 19.5" Open Frame Touchscreen (Rev B)
- HDMI cable
- VGA Cable
- RJ45 OSD Remote
- Touch USB Cable
- User Manual CD
- Quick Install Guide
- Flush Mount Brackets w/Screws
- EEI Label
- Japan Class-B info sheet
Packaged Quantity
1
Product color
Black
Product Model
2094L
Product Name
2094L 19.5" Open Frame Touchscreen (Rev B)
Product Type
Open-frame LCD Touchscreen Monitor
Response time
20 ms
Screen Mode
Full HD
Screen Size Class
20"
Standby Power Consumption
1.50 W
USB Standard
USB 2.0
Viewable Screen Size
19.5"
Weight (Approximate)
10.36 lb
Width
18.9"
