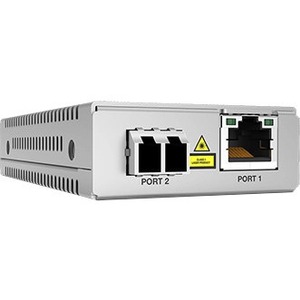

Allied Telesis MMC2000/LC Transceiver/Media Converter
Allied Telesis MMC2000/LC Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Wall Mountable, Rack-mountable - TAA Compliant
| $348.01 | Retail $536.00 |
- Convert speed as well as media type
- 2K MAC address tables
- Store-and-forward switching mode
- Transparent to IEEE 802.1Q packets
- Auto Negotiation and Auto MDI/MDIX on copper port
- IEEE support on copper
- Far End Fault on Fiber
- 10K byte Jumbo packets
- Link/Activity LED per port
- Smart MissingLink
By:
Allied Telesis
Manufacturer:
Allied Telesis, Inc
Product ID:
98346
Item:
AT-MMC2000/LC-960
UPC Code:
767035218670
Our Part #
6KG150
Condition
New
$348.01EA
$536.00
$536.00
Availability
Only 8 Left In Stock
Product description
Allied Telesis MMC2000/LC Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Wall Mountable, Rack-mountable - TAA Compliant
1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - Wall Mountable, Rack-mountable - TAA Compliant
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
62.5/125 µm
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Wavelength
850 nm
Maximum Distance Supported
1640.42 ft
UPC Alternates
767035218670
Brand Name
Allied Telesis
Country of origin
Singapore
Depth
4"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmental Certification
REACH
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Rack-mountable
Form factor
Wall Mountable
Height
0.9"
Manufacturer
Allied Telesis Inc
Manufacturer Part Number
AT-MMC2000/LC-960
Manufacturer Website Address
http://www.alliedtelesis.com
Marketing Information
The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint but also to save space in its working environment. Despite its compact size the MMC Series delivers all the power and functionality of standard size media converters.
Extend Networks
The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen the fiber-optic port has options for fixed SC ST LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps with a maximum operating distance of 100 meters (328 feet).
VLAN Support
Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets making them unsuitable for modern networks.
Small and Flexible
The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.
Smart MissingLink (SML)
The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link Restoration
Smart Link restoration allows the devices in cases of power failure link loss or other interrupted service to automatically restore the link without the need to restart/reset them.
Power Saving
The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage the MMC Series media converters are some of the most efficient in the market today.
Link Test
The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs you can perform a link test to determine which port is experiencing a problem and focus your troubleshooting efforts on the right cable or end node.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
1000Base-SX
Network Technology
10/100/1000Base-T
Number of Network (RJ-45) Ports
1
Package Contents
- MMC2000/LC Transceiver/Media Converter
- AC Power Supply
Power source
AC Adapter
Product Model
MMC2000/LC
Product Name
MMC2000/LC Transceiver/Media Converter
Product Series
MMC2000
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
6 oz
Width
2.2"
