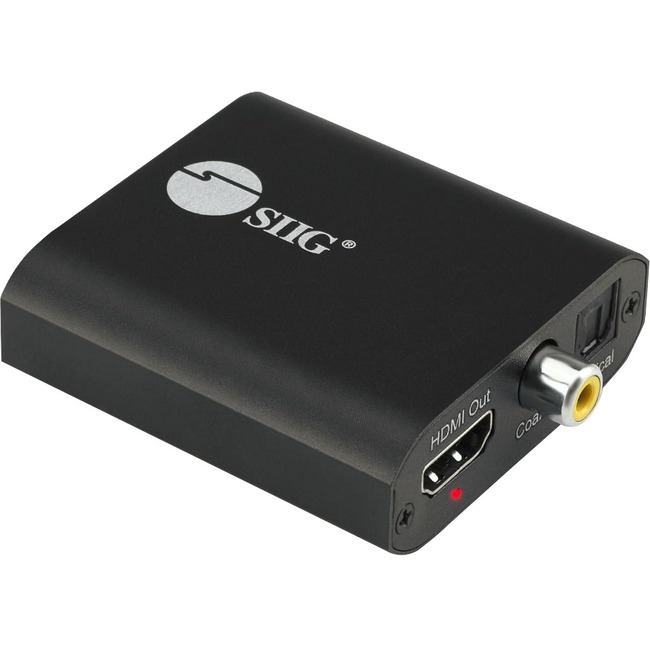

SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo, Toslink Optical, Coaxial S/PDIF
SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo, Toslink Optical, Coaxial S/PDIF - EDID Management , Uncompressed Formats Supported
| $20.24 | Retail $39.99 |
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or coaxial S/PDIF outputs
- Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
By:
SIIG
Manufacturer:
SIIG, Inc
Product ID:
99607
Item:
CE-H26Q11-S1
UPC Code:
662774044675
Our Part #
8PZ335
Condition
New
$20.24EA
$39.99
$39.99
Availability
Only 536 Left In Stock
Product description
SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo, Toslink Optical, Coaxial S/PDIF - EDID Management , Uncompressed Formats Supported
EDID Management , Uncompressed Formats Supported
Specifications
UPC Alternates
662774044675
Brand Name
SIIG
Country of origin
China
Depth
2.6"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
External
Functions
Audio Compression
Functions
Signal Conversion
Functions
Audio Extraction
Height
0.8"
Limited Warranty
2 Year
Manufacturer
SIIG Inc
Manufacturer Part Number
CE-H26Q11-S1
Manufacturer Website Address
http://www.siig.com
Marketing Information
Extracts 4K HDMI audio and splits it to analog stereo Toslink optical digital and Coaxial S/PDIF outputs
Features
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo 5.1 channel Toslink optical or
coaxial S/PDIF outputs - Supports video resoIution up to 4K@30Hz YUV 4:4:4 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D) 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital Dolby Digital
- Supports HDCP 1.4 HDMI 1.4 specification and Plug and Play installation
Maximum resolution
3840 x 2160
Package Contents
- 4K HDMI with Audio Extractor Converter
- Micro USB Power Cable
- Quick Start Guide
Product Name
4K HDMI with Audio Extractor Converter
Product Type
Signal Converter
Weight (Approximate)
0.11 lb
Width
2.2"
