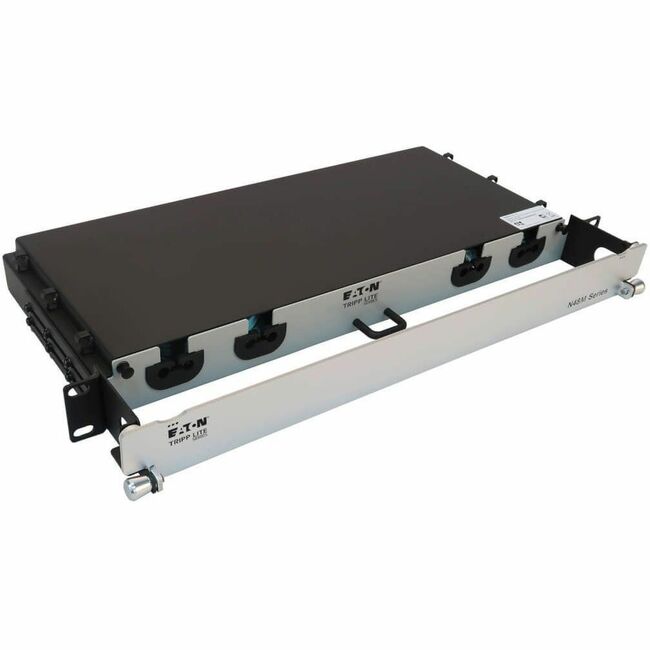

Tripp Lite Preloaded Fiber Panel 1U 8x LC/LC Duplex Cables M/M OM4 MMF 10M

OVERVIEW

• Technology Multimode
• Optical Mode OM4
• Panel Cable Number 8
• Panel Cable Length (m) 10
• Mode Type Multimode

Firmware / Software Docs

• Offset Ports No

PHYSICAL

• Cable Jacket Rating OFNP
• Cable Outer Diameter (OD) 2.9MM
• Clad Diameter (micron) 125
• Core Diameter (micron) 50
• Primary Coating Diameter (micron) 245
• Number of Fibers 2
• Cable Length (ft.) 32.8
• Cable Length (m) 10.00
• Cable Length (in.) 393.7
• Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC)

COMMUNICATIONS

• Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
• Wavelength 1300nm; 850nm
• Attenuation @ 850NM 3.0dB/KM
• Attenuation @ 1300NM 1.0dB/KM
• Insertion Loss 0.20dB

1U panel comes preloaded with spools of multimode fiber cable that allow you to extend the exact length required and store the excess out of sight.

Description
Preloaded Fiber Panel 1U - 8x LC/LC Duplex Cables (M/M) OM4 Multimode 10 m (32.8 ft.)

Features

1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time
All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 1U chassis features eight LC Duplex multimode cables all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48M-8L2L-10 mounts in just 1U of space in an EIA-standard 19-inch rack.

• N48M-8L2L-10 Preloaded Fiber Panel
• 8 x LC Duplex to LC Duplex Cables 10 m (32.8 ft.)
• Installation Guide
