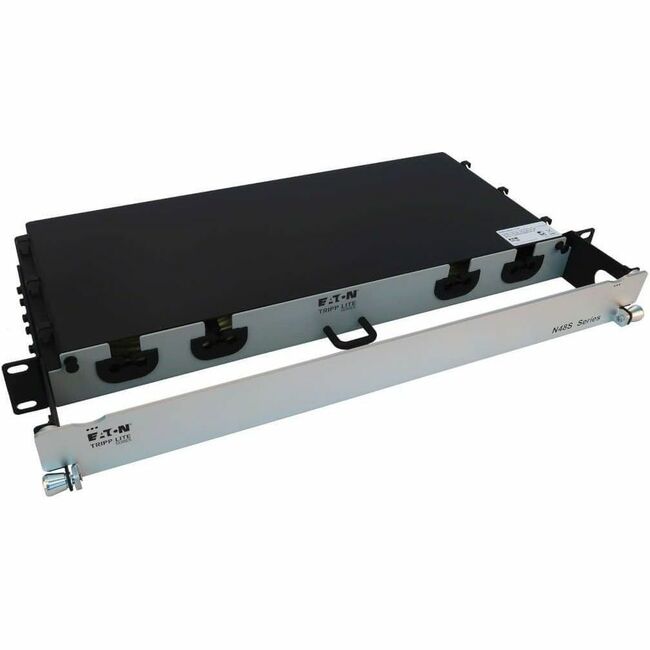

Tripp Lite Preloaded Fiber Panel 1U 2x24F MTP/MPO-AC 12xLC F/M OS2 SMF 20M
Tripp Lite Preloaded Fiber Panel 1U 2x24F MTP/MPO-AC 12xLC F/M OS2 SMF 20M - 12 x Duplex - 1U High - Yellow, Black, Blue, Green, White - 19" Wide - Rack-mountable
| $1,275.07 | Retail $1,713.60 |
- Dual MTP/MPO-to-LC 24-fiber OS2 singlemode cables come coiled inside for instant use
- Use only as much cable as you need; store the remainder inside to avoid clutter
- Flexible cable length allows reuse of cables if equipment is moved
- Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
99757
Item:
N48S-2M24L12-20
UPC Code:
037332262752
Our Part #
9HB157
Condition
New
$1,275.07EA
$1,713.60
$1,713.60
Availability
Only 1 Left In Stock
Product description
Tripp Lite Preloaded Fiber Panel 1U 2x24F MTP/MPO-AC 12xLC F/M OS2 SMF 20M - 12 x Duplex - 1U High - Yellow, Black, Blue, Green, White - 19" Wide - Rack-mountable
12 x Duplex - 1U High - Yellow, Black, Blue, Green, White - 19" Wide - Rack-mountable
Specifications
Compatible Rack Unit
1U
Compatible Rack Width
19"
LC Port Type
Duplex
Number of LC Ports
12
Product Material
Aluminum
UPC Alternates
037332262752
Additional Information
OVERVIEW
- Technology MTP/MPO; Singlemode
- Optical Mode OS2; SM
- Panel Cable Number 2
- Panel Cable Length (m) 20
- Mode Type Singlemode
Firmware / Software Docs
- Offset Ports No
PHYSICAL
- Cable Jacket Rating OFNP
- Cable Outer Diameter (OD) 2.9MM
- Clad Diameter (micron) 125
- Core Diameter (micron) 9
- Primary Coating Diameter (micron) 245
- Number of Fibers 24
- Cable Length (ft.) 65.6
- Cable Length (m) 20.00
- Cable Length (in.) 787.4
- Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC)
COMMUNICATIONS
- Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Wavelength 1310nm; 1550nm
- Attenuation @ 1310NM 0.36 dB/KM
- Attenuation @ 1550NM 0.22 dB/KM
- Insertion Loss MTP/MPO: 0.70dB; LC: 0.30dB
Brand Name
Tripp Lite
Country of origin
China
Depth
10.2"
Environmental Certification
REACH
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Height
1.7"
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N48S-2M24L12-20
Manufacturer Part Number
N48S2M24L1220
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
1U panel comes preloaded with spools of singlemode fiber cable that allow you to extend the exact length required and store the excess out of sight.
Description
Preloaded Fiber Panel 1U - 2x (24F MTP/MPO-APC to 12x LC Duplex F/M) 24F Trunk Cables OS2 Singlemode 20 m (65.6 ft.)
Features
1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time
All necessary cabling is included with this preloaded fiber panel coiled inside and ready for immediate use. The aluminum 1U chassis features two 24-fiber MTP/MPO-APC to LC Duplex singlemode trunk cables both 20 meters (65.6 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48S-2M24L12-20 mounts in just 1U of space in an EIA-standard 19-inch rack.
Package Contents
- N48S-2M24L12-20 Preloaded Fiber Panel
- 2 x MTP/MPO-APC to LC Duplex Trunk Cables 20 m (65.6 ft.)
- Installation Guide
Product color
Yellow
Product color
Green
Product color
Blue
Product color
Black
Product color
White
Product Model
N48S-2M24L12-20
Product Name
N48S-2M24L12-20 Preloaded Fiber Panel
Product Type
Network Patch Panel
Width
17.3"
