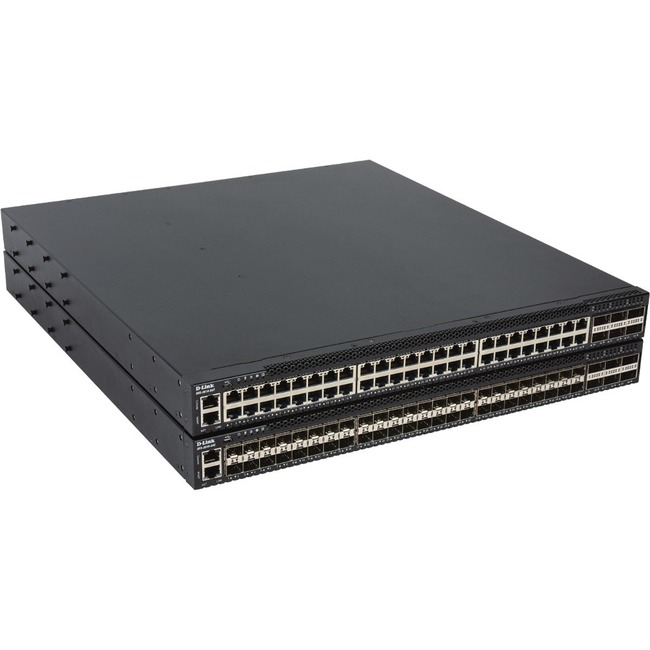

D-Link DXS-3610-54T Layer 3 Switch
D-Link DXS-3610-54T Layer 3 Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - 330.20 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
| $16,218.20 | Retail $27,734.99 |
- Features 48 networking ports to meet the requirements of the most demanding workgroups
- Cascade to other network devices through the uplink port to expand your local area network
- Stack port provides an easy and hassle-free way to extend your office network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Rack mounting enables you to organize wires & secure cables for professional installation
By:
D-Link
Manufacturer:
D-Link Systems, Inc
Product ID:
99928
Item:
DXS-3610-54T/SI
UPC Code:
790069454288
Our Part #
9AQ829
Condition
New
$16,218.20EA
$27,734.99
$27,734.99
Availability
Only 6 Left In Stock
Product description
D-Link DXS-3610-54T Layer 3 Switch - 48 Ports - Manageable - 3 Layer Supported - Modular - 330.20 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
48 Ports - Manageable - 3 Layer Supported - Modular - 330.20 W Power Consumption - Twisted Pair, Optical Fiber - 1U High - Rack-mountable
Specifications
Compatible Rack Unit
1U
Number of Power Supplies Supported
2
Number of Total Expansion Slots
6
Total Number of Network Ports
48
UPC Alternates
790069454288
Brand Name
D-Link
Country of origin
China
Ethernet Technology
100 Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Expansion Slot Type
QSFP28
Form factor
Rack-mountable
Frequency
50 Hz
Frequency
60 Hz
Height
1.7"
Input voltage
120 V AC
Input voltage
230 V AC
Layer Supported
3
Length
19.2"
Manageable
Yes
Manufacturer
D-Link Systems Inc
Manufacturer Part Number
DXS-3610-54T/SI
Manufacturer Website Address
http://www.dlink.com
Marketing Information
The D-Link DXS-3610 Series Layer 3 Stackable 10G Managed Switches are a set of new compact high-performance switches that feature ultra low latency with 10G Ethernet switching and routing. The 1U height and front-to-back airflow make the DXS-3610 Series suitable for Enterprise and campus aggregation network environments. The DXS-3610 Series is available in two configurations; 48 fixed 10G SFP+ with 6 fixed 100G QSFP28 and 48 fixed 10G Base-T with 6 fixed 100G QSFP28. 100G ports allow for either uplink or stacking configurations depending on your system's needs.
Performance Availability and Redundancy
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps. This switch series features hot-swappable power supplies and fan trays to provide a redundant high-availability architecture. The modular power design allows network administrators to use either AC or DC power sources for maximum deployment flexibility. When using two power modules the power load is distributed extending the lifetime of the modules. The DXS-3610 Series also features a modular fan back-up design providing n+1 redundancy for the system. Safeguarding against fan failure or rising temperatures smart fans automatically adjust their speed.
Flexible Software
The DXS-3610 Series can be deployed using one of two different software images. The Standard Image (SI) features a wide range of Layer 2 VLAN multicasting Quality of Service (QoS) security data center and static routing protocols including RIP VRRP and OSPF. The Enhanced Image (EI) features comprehensive IPv4/v6 routing including BGP and L3 multicasting features such as IGMP MLD PIM-DM SM SDM SSM and DVMRP. The Enhanced Image (EI) also supports L2/L3 MPLS VPN which enables the DXS-3610 Series to be deployed as the core router of an enterprise environment or as an aggregation switch in an MPLS environment. The Switch Resource Management (SRM) feature allows the hardware table size to be dynamically adjusted so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode LAN Mode and L2 VPN Mode. These modes modify the size of the Layer 2 and 3 tables for optimum efficiency.
Software-Defined Networking
By supporting software-defined networking (SDN) the DXS-3610 Series gives network operators more flexibility and control by providing new ways to design build and manage their networks. As a streamlined approach to network management SDN separates the control plane from the data plane where the control plane manages infrastructure by utilizing open protocols such as OpenFlow. The DXS-3610 Series with SDN can help build centrally managed agile networks abstract cloud resources and simplify network operations.
Switch and Link Failover
In addition to traditional Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) the DXS-3610 Series also supports advanced Ethernet failover redundancy technologies such as Ethernet Ring Protection Switching (ERPS) and FlexLink. ERPS provides millisecond-level failover in a ring topology while FlexLink offers link failover on designated switch ports providing link redundancy without STP or LBD.
Performance Availability and Redundancy
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps. This switch series features hot-swappable power supplies and fan trays to provide a redundant high-availability architecture. The modular power design allows network administrators to use either AC or DC power sources for maximum deployment flexibility. When using two power modules the power load is distributed extending the lifetime of the modules. The DXS-3610 Series also features a modular fan back-up design providing n+1 redundancy for the system. Safeguarding against fan failure or rising temperatures smart fans automatically adjust their speed.
Flexible Software
The DXS-3610 Series can be deployed using one of two different software images. The Standard Image (SI) features a wide range of Layer 2 VLAN multicasting Quality of Service (QoS) security data center and static routing protocols including RIP VRRP and OSPF. The Enhanced Image (EI) features comprehensive IPv4/v6 routing including BGP and L3 multicasting features such as IGMP MLD PIM-DM SM SDM SSM and DVMRP. The Enhanced Image (EI) also supports L2/L3 MPLS VPN which enables the DXS-3610 Series to be deployed as the core router of an enterprise environment or as an aggregation switch in an MPLS environment. The Switch Resource Management (SRM) feature allows the hardware table size to be dynamically adjusted so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode LAN Mode and L2 VPN Mode. These modes modify the size of the Layer 2 and 3 tables for optimum efficiency.
Software-Defined Networking
By supporting software-defined networking (SDN) the DXS-3610 Series gives network operators more flexibility and control by providing new ways to design build and manage their networks. As a streamlined approach to network management SDN separates the control plane from the data plane where the control plane manages infrastructure by utilizing open protocols such as OpenFlow. The DXS-3610 Series with SDN can help build centrally managed agile networks abstract cloud resources and simplify network operations.
Switch and Link Failover
In addition to traditional Spanning Tree Protocol (STP) Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) the DXS-3610 Series also supports advanced Ethernet failover redundancy technologies such as Ethernet Ring Protection Switching (ERPS) and FlexLink. ERPS provides millisecond-level failover in a ring topology while FlexLink offers link failover on designated switch ports providing link redundancy without STP or LBD.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10GBase-T
Network Technology
100GBase-X
Power consumption
330.20 W
Power source
Power Supply
Product Model
DXS-3610-54T
Product Name
DXS-3610-54T Layer 3 Switch
Product Series
DXS-3610
Product Type
Layer 3 Switch
Weight (Approximate)
21.78 lb
Width
17.4"
