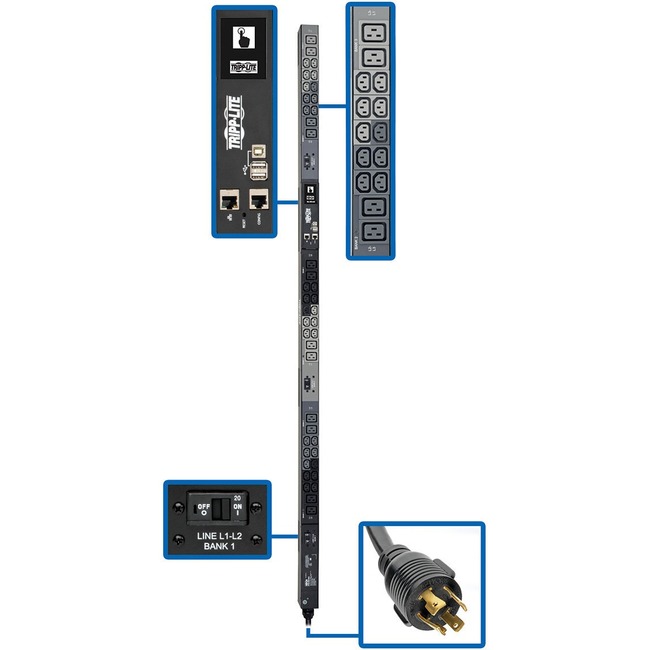

Tripp Lite 3-Phase PDU Monitored 14.5kW 208/240V 30 C13; 12 C19 Hubbell TAA
Tripp Lite 3-Phase PDU Monitored 14.5kW 208/240V 30 C13; 12 C19 Hubbell TAA - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
| $475.99 | Retail $1,959.98 |
- A device fitted with multiple outputs for the distribution of electric power
- Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
106106
Item:
PDU3EVN6H50BA
UPC Code:
037332213556
Our Part #
5JV829
Condition
New
$475.99EA
$1,959.98
$1,959.98
Availability
Only 9999 Left In Stock
Product description
Tripp Lite 3-Phase PDU Monitored 14.5kW 208/240V 30 C13; 12 C19 Hubbell TAA - Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Monitored - Hubbell CS8365C - 12 x IEC 60320 C19, 30 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Specifications
Mounting Orientation
Vertical
PDU Type
Monitored
Phase
Three Phase
Power Rating (Watt)
14.50 kW
Receptacle Detail
30 x IEC 60320 C13
Receptacle Detail
12 x IEC 60320 C19
UPC Alternates
037332213556
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input current
35 A
Input voltage
230 V AC
Limited Warranty
2 Year
Management
Protocols:
- IPv4
- IPv6
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU3EVN6H50BA
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Features
14.5kW 3-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers server rooms and high-density network closets the PDU3EVN6H50BA features 30 C13 and 12 C19 208/240V outlets in three breakered load banks which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.
Color Touchscreen LCD Offers Important Data at a Glance
An easy-to-navigate color touchscreen LCD reports network data including IP address input current level per phase and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU the LCD also displays status and environmental data such as temperature and humidity.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rackmounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with Hubbell CS8365C 208/240V 3-phase input connects the PDU to a compatible AC power source generator or protected UPS.
14.5kW 3-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers server rooms and high-density network closets the PDU3EVN6H50BA features 30 C13 and 12 C19 208/240V outlets in three breakered load banks which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.
Color Touchscreen LCD Offers Important Data at a Glance
An easy-to-navigate color touchscreen LCD reports network data including IP address input current level per phase and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU the LCD also displays status and environmental data such as temperature and humidity.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rackmounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with Hubbell CS8365C 208/240V 3-phase input connects the PDU to a compatible AC power source generator or protected UPS.
Mount Type
Rack-mountable
Output voltage
208 V AC
Output voltage
240 V AC
Package Contents
- PDU3EVN6H50BA 42-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 42 x Plug-lock Insert Sleeves
- Rack-Mounting Hardware
- Spare Mounting Buttons
- Mounting Bracket Accessory
- Owner's Manual
Plug/Connector Type
Hubbell CS8365C
Product Name
PDU3EVN6H50BA 42-Outlet PDU
Product Type
PDU
Protection Type
Overload Protection
Rack Height
0U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
12.85 lb
Width
2.2"
