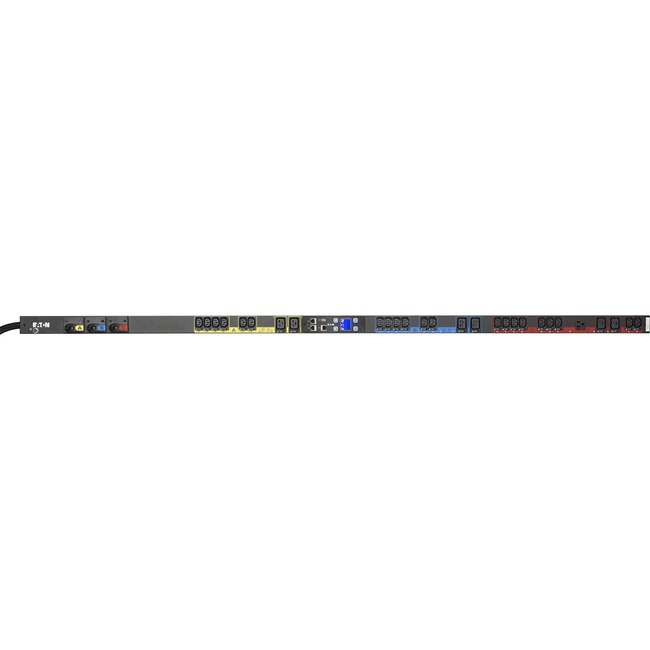

Eaton ePDU G3 Managed 42U-C IN: L21-30P 24A 3P OUT: 21xC13:6xC19:1x5-20R
Eaton ePDU G3 Managed 42U-C IN: L21-30P 24A 3P OUT: 21xC13:6xC19:1x5-20R - Switched - NEMA L21-30P - 1 x NEMA 5-20R, 6 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 8640 W - Network (RJ-45) - 42U - Rack-mountable
| $1,964.84 |
- Enables on/off/reboot capabilities for a single piece of equipment with outlet-level control
- Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
- Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
- Manages entire environment remotely over the network from a single interface
- ePDU G3 Managed provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain four ePDUs to share the same network connection and IP address
- Cisco EnergyWise Certified- Eaton's new ePDUs are Cisco EnergyWise Certified
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
94295
Item:
EMA333-10
UPC Code:
743172078902
Our Part #
2H7191
Condition
New
$1,964.84EA
Availability
Only 30 Left In Stock
Product description
Eaton ePDU G3 Managed 42U-C IN: L21-30P 24A 3P OUT: 21xC13:6xC19:1x5-20R - Switched - NEMA L21-30P - 1 x NEMA 5-20R, 6 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 8640 W - Network (RJ-45) - 42U - Rack-mountable
Switched - NEMA L21-30P - 1 x NEMA 5-20R, 6 x IEC 60320 C19, 21 x IEC 60320 C13 - 120 V AC, 230 V AC - 8640 W - Network (RJ-45) - 42U - Rack-mountable
Specifications
Network (RJ-45)
Yes
PDU Type
Switched
Power Rating (Watt)
8640 W
Receptacle Detail
1 x NEMA 5-20R
Receptacle Detail
6 x IEC 60320 C19
Receptacle Detail
21 x IEC 60320 C13
UPC Alternates
743172078902
Brand Name
Eaton
Country of origin
China
Depth
2.6"
Height
66.5"
Input current
24 A
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
120 V AC - 230 V AC
Limited Warranty
3 Year
Manufacturer
Eaton Corporation
Manufacturer Part Number
EMA333-10
Manufacturer Website Address
http://www.eaton.com
Marketing Information
Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current voltage power and energy for load balancing capacity planning efficiency monitoring and energy usage reporting. Outlet switching allows for on off or reboot of individual outlets which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
- Outlet switching for on off and reboot control to reduce management costs
- Outlet level metering to +/- 1% billing grade accuracy for customer billing or level 3 PUE calculations
- LCD pixel display with hot-swap capability enables load balancing and local setup of key parameters such as IP address and display orientation
- High operating temperature (140 degrees F / 60 degrees C) for containment or hot network closet environments
- Daisy chain of IP addresses allows four devices to share one network connection to reduce network install costs by up to 75%
- IEC outlet grip plug retention secures plugs in place using standard cables
Mount Type
Rack-mountable
Plug/Connector Type
NEMA L21-30P
Product Family
ePDU Managed
Product Line
ePDU
Product Name
ePDU Managed 28-Outlets PDU
Product Series
Managed
Product Type
PDU
Rack Height
42U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Receptacle Type
NEMA 5-20R
Width
2.1"
