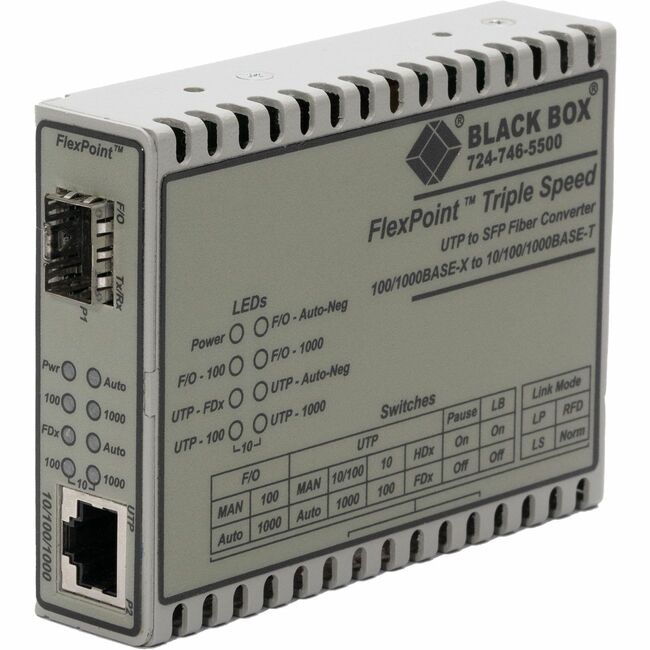

Black Box FlexPoint LMC1017A-SFP Transceiver/Media Converter
Black Box FlexPoint LMC1017A-SFP Transceiver/Media Converter - 1 x Network (RJ-45) - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rack-mountable, Rail-mountable - TAA Compliant
| $735.56 | Retail $825.95 |
- Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs
- Compact size
- Powered by an AC power supply or the optional rack-mountable chassis.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
- DIP switches enable you to configure port settings.
- Supports jumbo frames up to 10,240 bytes.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
120043
Item:
LMC1017A-SFP
UPC Code:
013269144118
Our Part #
43201553
Condition
New
$735.56EA
$825.95
$825.95
Availability
Only 53 Left In Stock
Product description
Black Box FlexPoint LMC1017A-SFP Transceiver/Media Converter - 1 x Network (RJ-45) - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rack-mountable, Rail-mountable - TAA Compliant
1 x Network (RJ-45) - 10/100/1000Base-T, 100/1000Base-X - 1 x Expansion Slots - SFP - 1 x SFP Slots - Wall Mountable, Rack-mountable, Rail-mountable - TAA Compliant
Specifications
Fiber Mode Supported
Multi-mode
Maximum Distance Supported
1804.46 ft
Number of Total Expansion Slots
1
UPC Alternates
013269144118 093007645701 822088108825
Brand Name
Black Box
Certifications & Standards
- CE
- TAA Compliant
Compatibility
- Black Box FlexPoint 14-Slot Power Chassis
- Black Box FlexPoint 5-Position Rackmount Kit
Country of origin
United States
Depth
4"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
Ethernet
Expansion Slot Type
SFP
Form factor
Rail-mountable
Form factor
Rack-mountable
Form factor
Wall Mountable
Height
1"
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LMC1017A-SFP
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
- Enables you to send data much farther and more securely than what's possible for copper Ethernet.
- Auto negotiates for speed to achieve the best possible mode of operation.
- UTP port supports full- and half-duplex operation.
- To prevent congestion supports automatic and manual pause function for flow control.
- Supports jumbo frames up to 10240 bytes.
- Remote fault indicators signal loss of link for far-end fault and link fault conditions.
- Loopback mode supports end-to-end testing.
- Manual switches give you the option to control port operation.
- Hardware available for mounting the converter to a wall or a DIN rail.
- Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
- RoHS compliant.
FlexPoint™ Media Converters from Black Box are versatile and cost-effective standalone converters that provide the ultimate in flexibility and reliability for your expanding LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements.
Get the converters you need now and use them individually. Then when your LAN grows mount your converters on the wall in the FlexPoint 5-Position Rackmounting Kit or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies. The model featured here connects to 10- 100- or 1000-Mbps Ethernet on the copper side and to your choice of optical fiber on the SFP transceiver side depending on what you require for fiber type speed and distance.
The media converter supports duplex and single-fiber 155- and 1250-Mbps SFPs for standard communications as well as CWDM wavelengths for increased fiber bandwidth capacity. For easy installation and troubleshooting LEDs indicate the availability of power port activity and link status and duplex mode.
Remote fault indicators signal loss of link for far-end fault and link fault conditions. Detection of these indicators or link modes can be propagated to the other port to notify connected end devices of faults.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
100/1000Base-X
Network Technology
10/100/1000Base-T
Product Line
FlexPoint
Product Name
FlexPoint LMC1017A-SFP Transceiver/Media Converter
Product Type
Transceiver/Media Converter
USB
No
Weight (Approximate)
6.40 oz
Width
3"
