Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA
Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
| $866.77 | Retail $1,331.00 |
- 3.2-3.8kW 200/208/230/240V switched PDU
- 24 individually controllable outlets-20 C13, 4 C19
- Built-in LX Platform interface for 24/7 remote access
- Digital ammeter for on-site load monitoring in real time
- C20 inlet with 10ft NEMA L6-20P AC power cord
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
122891
Item:
PDUMV20HVNETLX
UPC Code:
818243091675
Our Part #
2DB228
Condition
New
$866.77EA
$1,331.00
$1,331.00
Availability
Only 70 Left In Stock
Product description
Tripp Lite PDU Switched 3.2-3.8kW 200-240V 20 C13;4 C19 LX Platform 0U TAA - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - TAA Compliant
Specifications
Mounting Orientation
Vertical
PDU Type
Switched
Phase
Single Phase
Power Rating (Watt)
3800 W
Receptacle Detail
4 x IEC 60320 C19
Receptacle Detail
20 x IEC 60320 C13
UPC Alternates
037332205292 818243091675
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.7"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input current
20 A
Input voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC
Limited Warranty
2 Year
Management
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- telnet
- SSH
- FTP
- DHCP
- NTP
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMV20HVNETLX
Manufacturer Website Address
http://www.tripplite.com
Marketing Information

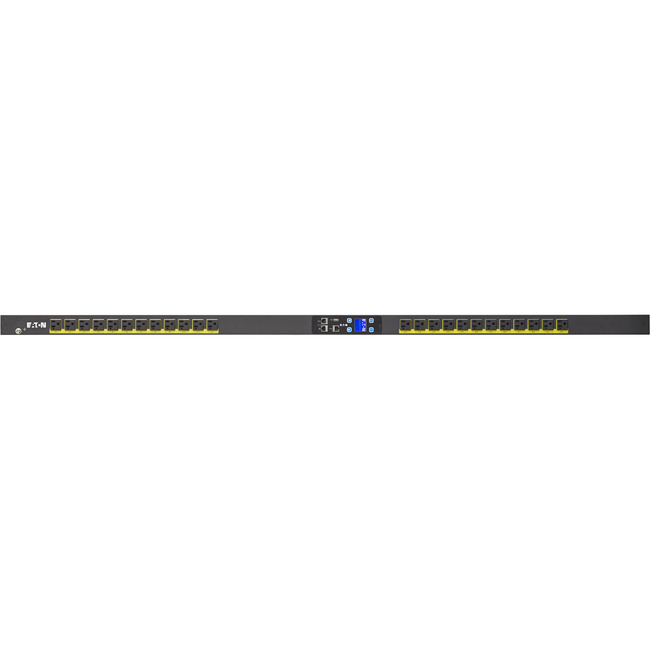

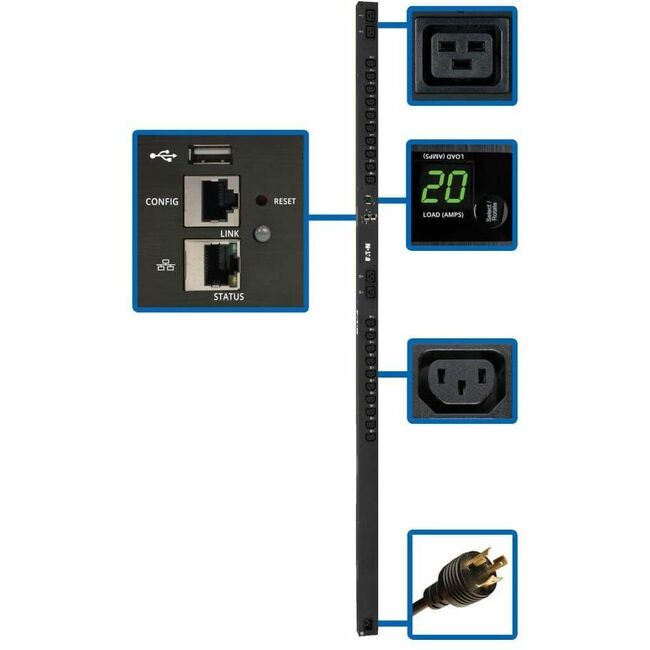

The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on turn off reboot or lock out power to each outlet. Recommended for any IT or industrial application it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP and NTP.
A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Mount Type
Rack-mountable
Package Contents
- PDUMV20HVNETLX 24-Outlet PDU
- Built-in LX Platform Interface
- Detachable NEMA L6-20P to C19 power cord 10 ft.
- Configuration Cable
- 24 x Plug-lock Inserts
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
Plug/Connector Type
NEMA L6-20P
Plug/Connector Type
IEC 60320 C20
Product Name
PDUMV20HVNETLX 24-Outlet PDU
Product Type
PDU
Rack Height
0U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
8.50 lb
Width
2.2"
