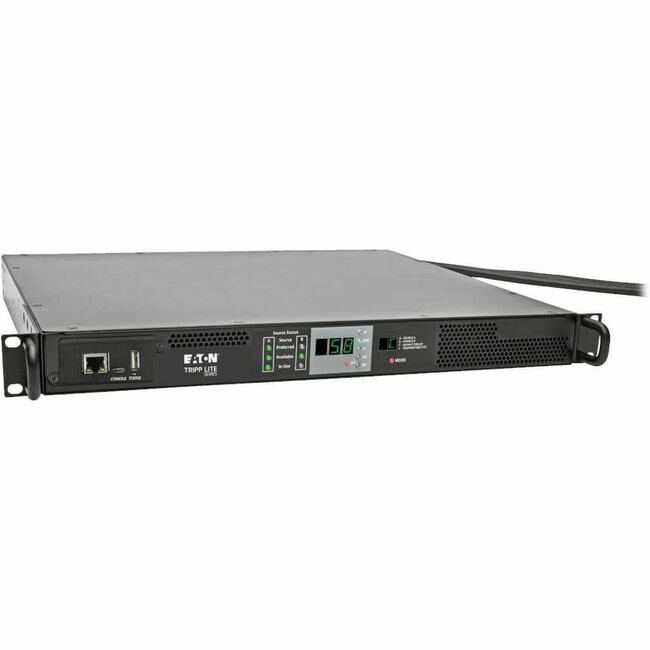

Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM
Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM - NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
| $1,153.96 | Retail $1,589.32 |
- Two single-phase L6-30P inputs with 10 ft. cords
- L6-30R outlet for connecting single device or 0U vertical PDU
- Automatic transfer switching within 1-5 ms
- Built-in LX Platform Network Interface
- Digital LED display for real-time status monitoring
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
129202
Item:
PDUMNH30HVAT
UPC Code:
037332184917
Our Part #
2T2164
Condition
New
$1,153.96EA
$1,589.32
$1,589.32
Availability
Only 66 Left In Stock
Product description
Tripp Lite PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM - NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
Specifications
Phase
Single Phase
Plug/Connector Detail
2 x NEMA L6-30P
Power Rating (Watt)
5800 W
Receptacle Detail
1 x NEMA L6-30R
UPC Alternates
037332184917 818283616678 818283689023
Brand Name
Tripp Lite
Country of origin
China
Depth
14"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.7"
Input current
30 A
Input voltage
230 V AC
Limited Warranty
2 Year
Management
Protocols:
- HTTP
- HTTPS
- SMTP
- SNMPv1
- SNMPv2
- SNMPv3
- Telnet
- SSH
- FTP
- DHCP
- BOOTP
- NTP
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMNH30HVAT
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug.
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads power loss and downtime. Digital display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads power loss and downtime. Digital display indicates power availability voltage source A/B input status output load and power factor as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
Mount Type
Rack-mountable
Package Contents
- PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
- Rack-Mounting Brackets
- Owner's Manual
Plug/Connector Type
NEMA L6-30P
Product Name
PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU
Product Series
Monitored
Product Type
PDU
Rack Height
1U
Receptacle Type
NEMA L6-30R
Weight (Approximate)
15.37 lb
Width
16.9"
