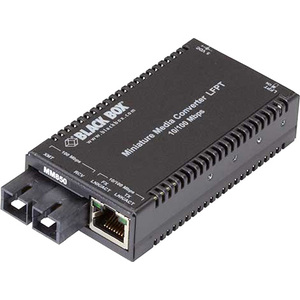

Black Box MultiPower Miniature Transceiver/Media Converter
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - USB - Multi-mode - Fast Ethernet - 100Base-T, 100Base-X - Rack-mountable, Standalone, DIN Rail Mountable - TAA Compliant
| $190.79 | Retail $227.10 |
- Compliant to EN62368|Brings fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
- Connects Ethernet or Fast Ethernet to fiber optic cable.
- Compact size-measures just 0.8"H x 1.8"W x 3.4"D.
- Converters may also be powered from a USB port using the LHC021A USB power cable.
- Autonegotiates for speed and duplex.
- A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting.
- Powered by a universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray.
- Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
134955
Item:
LHC014A-R4
UPC Code:
822088149026
Our Part #
01TV21
Condition
New
$190.79EA
$227.10
$227.10
Availability
Only 82 Left In Stock
You may be also interested
Product description
Black Box MultiPower Miniature Transceiver/Media Converter - 1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - USB - Multi-mode - Fast Ethernet - 100Base-T, 100Base-X - Rack-mountable, Standalone, DIN Rail Mountable - TAA Compliant
1 x Network (RJ-45) - 2 x SC Ports - DuplexSC Port - USB - Multi-mode - Fast Ethernet - 100Base-T, 100Base-X - Rack-mountable, Standalone, DIN Rail Mountable - TAA Compliant
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Cable Standard
62.5/125 µm
Fiber Optic Wavelength
1300 nm
Maximum Distance Supported
1.24 Mile
Number of SC Ports
2
SC Port Type
Duplex
UPC Alternates
822088149026
Brand Name
Black Box
Country of origin
Taiwan
Depth
4.7"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
DIN Rail Mountable
Form factor
Standalone
Form factor
Rack-mountable
Height
1"
Limited Warranty
6 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LHC014A-R4
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
Black Box® Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable then connect a fiber cable to the converter's other side. That's all there is to it! Best of all you can tuck these tiny converters unobtrusively behind your PC.
The converters not only link 10- and 100-Mbps segments to fiber cabling they also work as data rate converters performing 10/100 autonegotiation on the twisted-pair port.
Choose from multimode duplex single-mode duplex and single-mode single-strand duplex fiber versions.
For extra versatility you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter through the optional USB Power Adapter Cable (LHC021A) which plugs into a PC's USB port and is sold separately or through the optional rackmount PowerTray (LHC018A-AC-R2).
Media Converter Fast Ethernet Multimode 1300nm 2km SC. 10/100Mbps copper to 100Mbps fiber. Typical Enterprise applications include LAN extension fiber mode conversion or Ethernet speed conversion. These media converters feature a small metal enclosure that can be used stand alone or inserted into a high density rack mount chassis LHC018A-AC-R2. Converters include an external 100-240VAC power adapter with US and Europe plug clips. Converters may also be powered from a USB port using the LHC021A USB power cable. The LHC018A-AC-R2 chassis is 1.5U high has slots for up to 18 media converters and includes a 100-240VAC power supply. The media converters are unmanaged plug and play with no configuration.
Black Box® Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable then connect a fiber cable to the converter's other side. That's all there is to it! Best of all you can tuck these tiny converters unobtrusively behind your PC.
The converters not only link 10- and 100-Mbps segments to fiber cabling they also work as data rate converters performing 10/100 autonegotiation on the twisted-pair port.
Choose from multimode duplex single-mode duplex and single-mode single-strand duplex fiber versions.
For extra versatility you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter through the optional USB Power Adapter Cable (LHC021A) which plugs into a PC's USB port and is sold separately or through the optional rackmount PowerTray (LHC018A-AC-R2).
Media Converter Fast Ethernet Multimode 1300nm 2km SC. 10/100Mbps copper to 100Mbps fiber. Typical Enterprise applications include LAN extension fiber mode conversion or Ethernet speed conversion. These media converters feature a small metal enclosure that can be used stand alone or inserted into a high density rack mount chassis LHC018A-AC-R2. Converters include an external 100-240VAC power adapter with US and Europe plug clips. Converters may also be powered from a USB port using the LHC021A USB power cable. The LHC018A-AC-R2 chassis is 1.5U high has slots for up to 18 media converters and includes a 100-240VAC power supply. The media converters are unmanaged plug and play with no configuration.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
100Base-T
Network Technology
100Base-X
Number of Network (RJ-45) Ports
1
Package Contents
- MultiPower Miniature Transceiver/Media Converter
- External 100-240-VAC 50-60-Hz Adapter
Power source
Power Adapter
Product Line
Multipower Miniature
Product Name
MultiPower Miniature Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
3
Weight (Approximate)
1.20 lb
Width
2"
