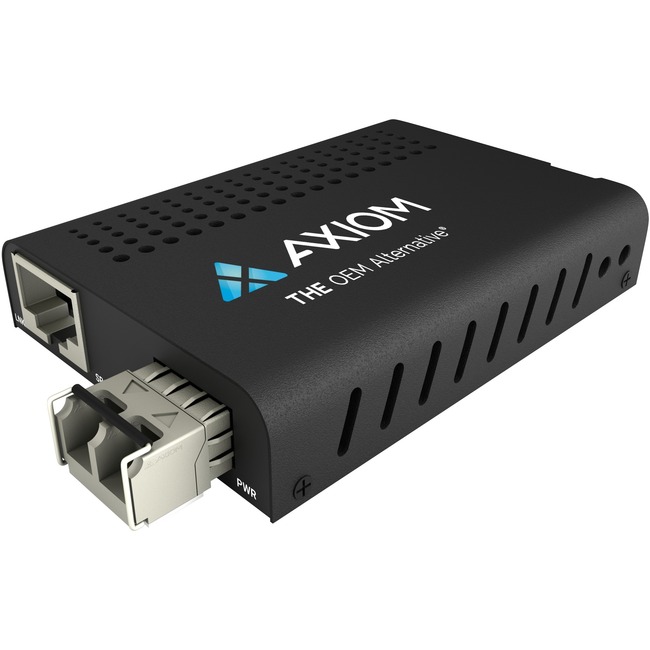

Axiom Transceiver/Media Converter
Axiom Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Single-mode - Fast Ethernet - 100Base-LX, 10/100Base-TX
| $115.98 |
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- With 100Base-LX technology get up to 100Mbps data transfer rate over optical fiber cable
By:
Axiom
Manufacturer:
Axiom Memory Solutions
Product ID:
143812
Item:
MC01-S3L10-AX
UPC Code:
840177840203
Our Part #
8UK783
Condition
New
$115.98EA
Availability
Only 42 Left In Stock
Product description
Axiom Transceiver/Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Single-mode - Fast Ethernet - 100Base-LX, 10/100Base-TX
1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Single-mode - Fast Ethernet - 100Base-LX, 10/100Base-TX
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
LC Port Type
Duplex
Maximum Distance Supported
6.21 Mile
Network (RJ-45)
Yes
UPC Alternates
840177840203
Brand Name
Axiom
Ethernet Technology
Fast Ethernet
Limited Warranty
1 Year
Manufacturer
Axiom Memory Solutions
Manufacturer Part Number
MC01-S3L10-AX
Manufacturer Website Address
http://www.axiommemory.com
Marketing Information
Features
The Axiom Mini 10/100Base-TX to 100Base-FX Media Converter Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective entry-level media conversion between Copper RJ45 10/100Base-TX ports and 100Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Full-Duplex or Half-Duplex Operation Modes
- Auto-MDI/MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100Base-TX UTP to 100Base-FX fiber media convertion
- Support IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX standards
- Available with Open SFP Port or optional built in LC/SC/ST Connections
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Compact package size
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
10/100Base-TX
Network Technology
100Base-LX
Number of Network (RJ-45) Ports
1
Power source
DC
Product Type
Transceiver/Media Converter
Total Number of Ports
2
