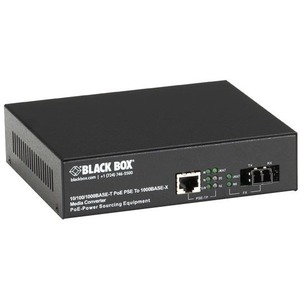

Black Box LPS500 Transceiver/Media Converter
Black Box LPS500 Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - DuplexLC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX - 1.24 Mile - AC/DC
| $434.42 | Retail $487.80 |
- A low-cost, economical solution for powering PoE devices over the same CATx link used for data communications.
- Powered device (PD) signature sending detects when a PoE device is connected.
- Protects against damage caused by overcurrent events and offers undercurrent detection.
- Link fault passthrough monitors both copper and fiber receive ports for loss of signal.
- Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link.
- Supports 802.3x flow control on full-duplex ports and backpressure on 10BASE-T/100BASE-TX half-duplex ports.
- Jumbo frame support (2 KB, normal mode; 9 KB, cut-through mode).
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
151927
Item:
LPS500A-SM-10K-LC-R3
UPC Code:
822088150602
Our Part #
43201553
Condition
New
$434.42EA
$487.80
$487.80
Availability
Only 66 Left In Stock
Product description
Black Box LPS500 Transceiver/Media Converter - Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - DuplexLC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX - 1.24 Mile - AC/DC
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x LC Ports - DuplexLC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX - 1.24 Mile - AC/DC
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Wavelength
1310 nm
LC Port Type
Duplex
Maximum Distance Supported
1.24 Mile
Network (RJ-45)
Yes
Number of PoE (RJ-45) Ports
1
PoE Port Type
PSE
UPC Alternates
822088150602
Brand Name
Black Box
Country of origin
Taiwan
Depth
5.2"
Ethernet Technology
Gigabit Ethernet
Frequency
50 Hz
Frequency
60 Hz
Height
1.6"
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LPS500A-SM-10K-LC-R3
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
- Copper port auto negotiates for network speed and features Auto MDI-X for easy cabling.
- LEDs indicate when it is feeding PoE power as well as when power is interrupted.
Connect Gigabit-speed fiber optic to a 10-/100-/1000-Mbps copper UTP segment while also powering 802.3af devices at the end of the CAT5 run. This PoE PSE Gigabit Media Converter from Black Box enables you to transparently connect copper cabling to single-mode fiber as an economical way to extend Ethernet communications well beyond the 100-meter (327-foot) CATx limit. In fact it supports a maximum distance of 10 kilometers (6.2 miles).
Along with matching copper to interference-free fiber at Gigabit speeds the converter doubles as power sourcing equipment (PSE) for Power over Ethernet (PoE) devices plugged in on the copper side. Using existing UTP cabling for both data communications and 48-VDC power simplifies a network application in terms of provisioning power and maintaining equipment. It's particularly ideal for locating equipment where electrical access is inconvenient or just too expensive to locate.
Install PoE-compatible security cameras and wireless access points in areas without any nearby power outlets while reducing your overall power consumption too. Plus the PoE PSE Gigabit Media Converter has extensive power management features including overcurrent protection undercurrent detection minimum load sensing and PSE MDI power enable/disable.
For reliable data communications the media converter boasts link fault pass-through (LFP) capabilities monitoring receives ports on both the fiber and copper sides for loss of signal. If signaling is lost on one media port it automatically disables the transmit (TX) signal to the other media port. Additionally a far-end fault (FEF) function enables the converter to cease sending a link pulse to a link partner if signaling on the fiber receive (RX) port is lost. The link partner will also synchronously stop sending data. This way you don't lose valuable data transmitted over an invalid link.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
1000Base-LX
Network Technology
10/100/1000Base-T
Power consumption
65 W
Power source
AC/DC
Product Name
LPS500 Transceiver/Media Converter
Product Series
LPS500
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
1.30 lb
Width
6.2"
