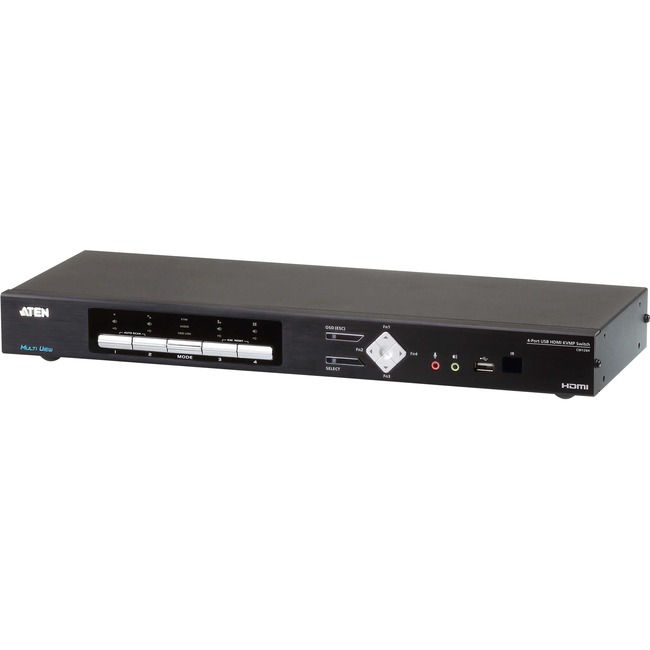

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant
ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant - 4 Computer(s) - 2 Local User(s) - 4096 x 2160 - 2 x Network (RJ-45) - 8 x USB - 6 x HDMI - Desktop, Rack-mountable
| $2,224.80 | Retail $2,429.00 |
- Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
- Features dual output on console side - a multi-view output and a full screen output
- Easily resizes and / or reposition any PiP or PbP to suit users' viewing needs
- System configuration via front panel, OSD, IR Remote, and RS-232 commands - display mode and port selection
- Supports superior video quality - Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2
- Drop down menu - edit display windows and other functions with the mouse and on-screen control panel
- Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands*
- Boundless Switching - Simply moves the mouse cursor across windows to switch to other video sources
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problem
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
173756
Item:
CM1284
UPC Code:
672792009471
Our Part #
6DC414
Condition
New
$2,224.80EA
$2,429.00
$2,429.00
Availability
Only 1 Left In Stock
You may be also interested
Product description
ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch-TAA Compliant - 4 Computer(s) - 2 Local User(s) - 4096 x 2160 - 2 x Network (RJ-45) - 8 x USB - 6 x HDMI - Desktop, Rack-mountable
4 Computer(s) - 2 Local User(s) - 4096 x 2160 - 2 x Network (RJ-45) - 8 x USB - 6 x HDMI - Desktop, Rack-mountable
Specifications
Number of HDMI Ports
6
UPC Alternates
672792009471
Brand Name
ATEN
Depth
6.5"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Desktop
Form factor
Rack-mountable
Height
1.7"
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
100V AC to 240V AC
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
CM1284
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected switched and displayed at the same time with independent keyboard and mouse control.
Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View Picture in Picture (PiP) Picture by Picture (PbP) Picture on Picture (PoP) and the other one provides Full Screen mode. Featuring Boundless Switching the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.
Incorporating Daisy Chain Control (DCC) capability users are allowed to control up to 3 additional CM1284 units via a single console. In addition CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected switched and displayed with independent keyboard and mouse control.
Engineered to meet the ever-increasing demand for multi-view functionality the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry financial trading and medical application.
Maximum Video Resolution
4096 x 2160
Number of Computers Supported
4
Number of Network (RJ-45) Ports
2
Number of USB Ports
8
Package Contents
- CM1284 4-Port USB HDMI Multi-View KVMP Switch
- 4 x USB HDMI Cables
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x Rack Mount Kit
- 1 x User Instructions
Packaged Quantity
1
Product Name
CM1284 4-Port USB HDMI Multi-View KVMP Switch
Product Type
KVM Switchbox
Weight (Approximate)
5.42 lb
Width
17.2"
