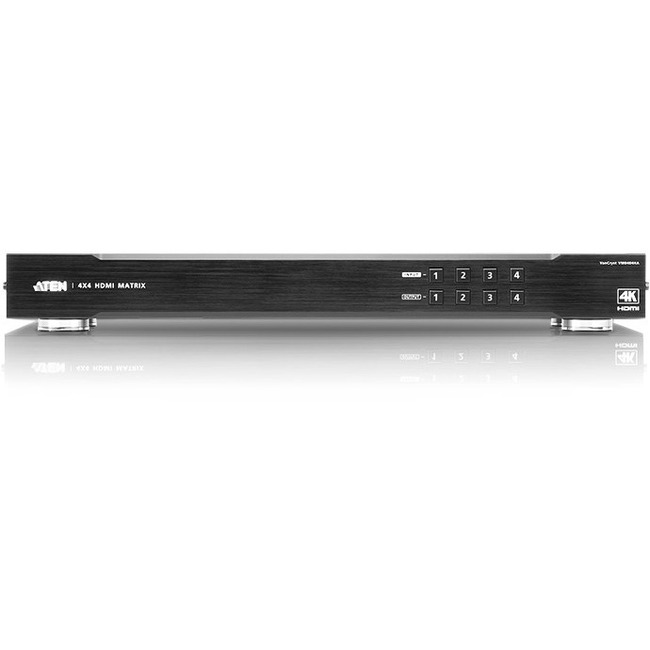

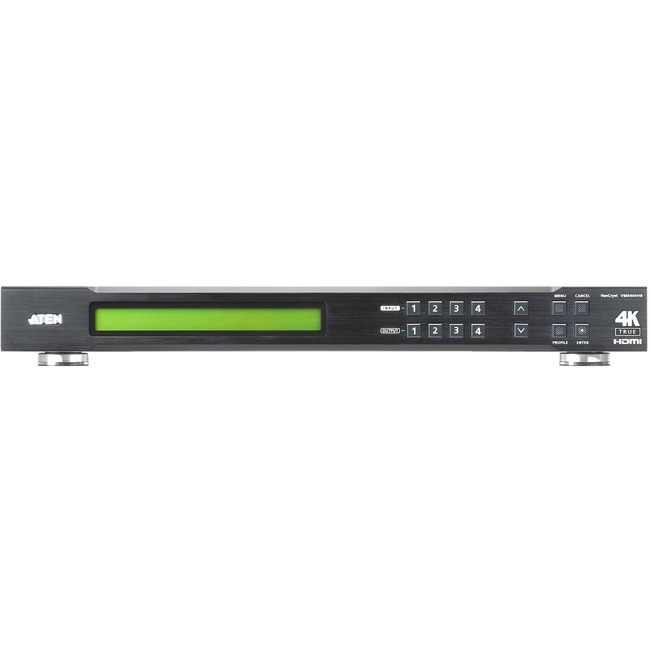

VanCryst VM0404HB 4 x 4 True 4K HDMI Matrix Switch-TAA Compliant
VanCryst VM0404HB 4 x 4 True 4K HDMI Matrix Switch-TAA Compliant - 4096 x 2160 - 4K - 4 x 4 - Computer, Display - 4 x HDMI Out
| $853.73 | Retail $1,231.00 |
- Connects any of 4 HDMI sources to any of 4 HDMI displays
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
- Multiple Control Methods - system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
- EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Signaling rates up to 6 Gbits for flawless true 4K output
- Supports Dolby True HD and DTS HD Master audio
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Supports Consumer Electronics Control (CEC)
- Power-on Detection - switches to the next powered-on source when one source is powered off
- ESD protection for HDMI
By:
VanCryst
Manufacturer:
ATEN Technology, Inc
Product ID:
174570
Item:
VM0404HB
UPC Code:
672792008788
Our Part #
5DC155
Condition
New
$853.73EA
$1,231.00
$1,231.00
Availability
Only 3 Left In Stock
Product description
VanCryst VM0404HB 4 x 4 True 4K HDMI Matrix Switch-TAA Compliant - 4096 x 2160 - 4K - 4 x 4 - Computer, Display - 4 x HDMI Out
4096 x 2160 - 4K - 4 x 4 - Computer, Display - 4 x HDMI Out
Specifications
UPC Alternates
672792008788
Brand Name
VanCryst
Connectivity technology
Cable
Country of origin
Taiwan
Depth
6"
Device Supported
Computer
Device Supported
Display
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Desktop
Form factor
Rack-mountable
Graphics Modes
4K
Height
1.7"
Limited Warranty
3 Year
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VM0404HB
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
ATEN's VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4) the VM0404HB delivers robust signal routing and ultra-fast digital video switching making it perfect for applications where routing of True 4K digital signals is required such as event venues digital classrooms auditoriums department stores and more.
The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI the VM0404HB can be operated through front-panel pushbuttons IR remote RS-232 control and Telnet via Ethernet connections giving users the ultimate convenience while keeping the system available with performance video switching anytime.
Maximum Operating Distance
49.21 ft
Maximum Video Resolution
4096 x 2160
Number of HDMI Inputs
4
Package Contents
- VM0404HB 4 x 4 True 4K HDMI Matrix Switch
- 1 x Power Cord
- 1 x IR Remote Control
- 1 x IR Receiver
- 1 x Rack Mounting Kit
- 1 x User Instructions
Packaged Quantity
1
Product Name
VM0404HB 4 x 4 True 4K HDMI Matrix Switch
Product Type
Audio/Video Switchbox
Weight (Approximate)
5.45 lb
Width
17.2"
