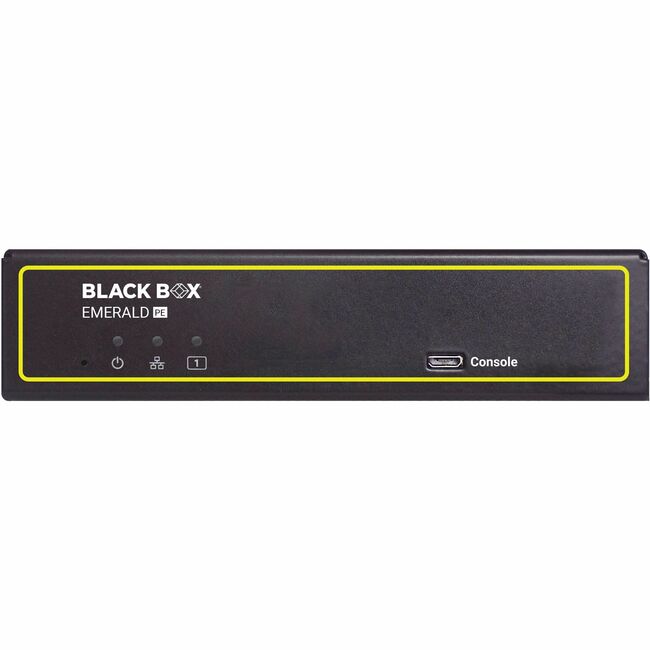

Black Box Emerald PE DisplayPort Single-Head Transmitter
Black Box Emerald PE DisplayPort Single-Head Transmitter - 328.08 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - DisplayPort - 120 V AC, 230 V AC Input Voltage - For Solaris, Linux, Mac, Windows - TAA Compliant
| $1,638.30 |
- Next-generation KVM extension and matrix switching simplifies access to both physical and virtual servers
- Pixel-perfect HD DisplayPort video up to 1920 x 1080
- Supports USB HID, transparent USB 2.0, and audio
- Manage bandwidth and user access, deploy new endpoints, update firmware, and more from the receiver's OSD or Boxilla
- Compatible with existing KVM systems like DKM and Boxilla
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
175594
Item:
EMD2000PE-DP-T
Our Part #
43211603
Condition
New
$1,638.30EA
Availability
Only 29 Left In Stock
Product description
Black Box Emerald PE DisplayPort Single-Head Transmitter - 328.08 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - DisplayPort - 120 V AC, 230 V AC Input Voltage - For Solaris, Linux, Mac, Windows - TAA Compliant
328.08 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 1 x Network (RJ-45) - 2 x USB - DisplayPort - 120 V AC, 230 V AC Input Voltage - For Solaris, Linux, Mac, Windows - TAA Compliant
Specifications
Power Plug Type
IEC 320-C14
Transmitter Depth
6.07"
Transmitter Height
1.32"
Transmitter Weight (Approximate)
12.32 oz
Transmitter Width
5.39"
Brand Name
Black Box
Connectivity technology
Wired
Device type
KVM Extender
Frequency
50 Hz
Frequency
60 Hz
Graphic Mode
Full HD
Input voltage
120 V AC
Input voltage
230 V AC
Input Voltage Range
100V AC to 240V AC
Manufacturer
Black Box Corporation
Manufacturer Part Number
EMD2000PE-DP-T
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Industry-Leading KVM
Emerald® PE gives users a seamless desktop experience anywhere on a TCP/IP network with the actual hardware stored in a corporate data center or in the cloud. Deploy PE on standard corporate networks and across WANs even for media-rich applications like video and photo editing.
Link TX and RX units in a point-to-point KVM extension over CATx up to 100 meters or even farther using an IP or WAN connection. Or connect multiple TX and RX units to an Emerald or IP matrix switch.
Start small with a point-to-point extension or scale Emerald infinitely by adding endpoints with no extra chassis or cards. PE supports up to 32 endpoints. Manage larger systems centrally with Boxilla®.
Easy Migration and Scaling
Scale access infinitely and gradually over an existing network infrastructure
Outstanding Video Quality
Emerald PE supports pixel-perfect HD DisplayPort video with 1920 x 1080 resolutions ideal for medical imaging and control rooms.
Virtualization Support
Emerald PE supports VM® and Microsoft® HyperV® using RDP 8.1 and RemoteFX.
Simple System Management
Manage bandwidth and user access deploy new endpoints update firmware and more via the RX's OSD or Boxilla a hardware-based management appliance with a user-friendly browser-based GUI.
Fail-Safe Operation
Redundant network ports offer 24/7 operation if one network fails. Connect the endpoints via two alternative direct links a direct link and a network connection or two independent networks.
Works with Other KVM Systems
Emerald works with the Emerald product family and these Black Box KVM product families:
- DKM proprietary direct-connect KVM system
- Freedom II Multi-Monitor Switch with Glide and Switch technology
- ControlBridge our system for one-touch multisystem control
- Boxilla KVM Manager
Maximum Operating Distance
328.08 ft
Maximum Video Resolution
1920 x 1080
Number of USB Ports
2
Package Contents
- Emerald PE DisplayPort Single-Head Transmitter
- 1 x Power Supply
- 1 x Power Cord
- 1 x USB Type A To B M/M
- 1 x Display Port Cables M/M
- 1 x Insert To Reference BlackBox.com For Resources
Packaged Quantity
1
Platform Supported
Windows
Platform Supported
Linux
Platform Supported
Mac
Platform Supported
Solaris
Product Line
Emerald
Product Name
Emerald PE DisplayPort Single-Head Transmitter
Product Type
KVM Extender Transmitter
USB
Yes
