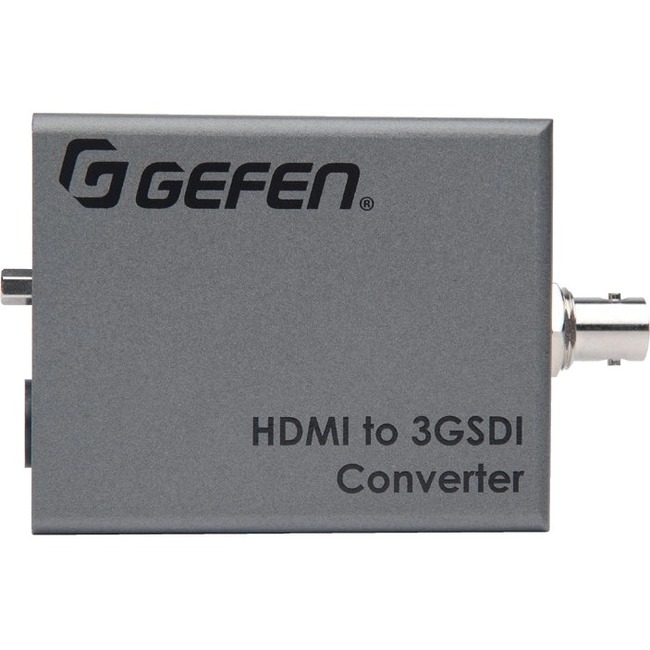

Gefen HDMI to 3GSDI Converter

• Converts HDMI to SDI
• Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
• Output resolutions up to 1080p60
• Supports HDMI 12 bit color and SDI 10-bit color
• Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )
• Supports 3G-SDI Levels A and B
• Up to LPCM 7.1 audio support
• Field configurable via DIP switch settings or Gefen Syner-G™ software
• Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management
• Mini USB port for use with Gefen Syner-G™
• Wide power supply operating range (6V to 24V DC)
• Locking power supply connector
• 1/4-20 industry-standard camera gear attachment thread on bottom
• Surface-mountable using the included detachable bracket

Use an HDMI source with an SDI display or downstream equipment

The Gefen HD-3G-C converts audio and video from HDMI to 3G-SDI and single link HD-SDI. Resolutions up to 1080p Full HD and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover configure/customize manage monitor and upgrade Gefen products. The Gefen EXT-HD-3G-C's compact enclosure while light enough to be held in place using double sided Velcro® tape features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector make the EXT-HD-3G-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.

• 1 x HDMI to 3GSDI Converter
• 1 x 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)
• 1 x Surface Mounting Bracket
• 1 x 12V DC Power Supply (EXT-PS121.5AIP-3P)
• 1 x Quick-Start Guide (QSG-EXT-HD-3G-C)
