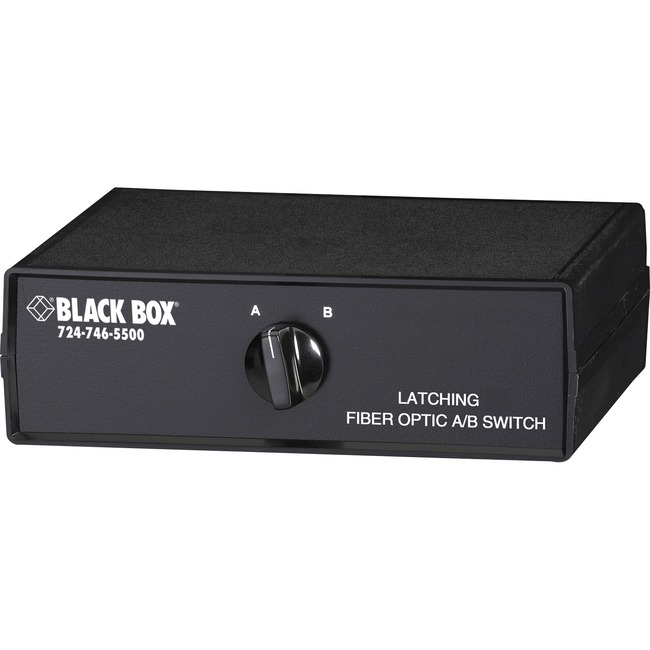

Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors
Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors - - Manual - TAA Compliant
| $1,837.70 |
- No optical-to-electrical conversion between fiber connections. Instead, the switch uses an internal mirror to optically move data between ports-technology that's trusted and time tested!
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
176576
Item:
SW1036A
UPC Code:
822088150213
Our Part #
43211601
Condition
New
$1,837.70EA
Availability
Only 1 Left In Stock
Product description
Black Box Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors - - Manual - TAA Compliant
- Manual - TAA Compliant
Specifications
Switching Type
Manual
UPC Alternates
822088150213
Additional Information
- Compatibility : 9-/125-micron single-mode fiber
- Crosstalk : -45 dB (typical) per FOTP-42
- MTBF : 100000 hours or 1000000 cycles
- Optical Loss : 0.5 dB (typical) at 1300 nm per FOTP-34 method B
- Power : Input: 100-240 VAC 50-60 Hz autosensing;
- Output: 5 VDC
- Sensitivity : 750 to 1440 nanometers
- Switching Speed : Typical: 5 msec; Maximum: 10 msec
- Connectors : (3) pairs of SC; Power: (1) 3.5-mm input
Brand Name
Black Box
Certifications & Standards
- FCC
- CE
Country of origin
United States
Frequency
60 Hz
Frequency
50 Hz
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
SW1036A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
- Switch latches mirror movement mechanically into a selected position and holds it there without the need for continuous electrical power.
- Connect a single workstation to two or more networks or remote devices.
- Simple to use. To route signals just turn a knob on the front panel.
- Ideal for government healthcare financial or other applications where a private data-sensitive network connects to a publicly accessible network.
- For reliable switching in mission-critical environments the micro-mirror is bonded to precise positioning servers.
- Air-gap isolation provides a physical break in the circuit connection.
- Operates transparently to signal rates formats and wavelengths and doesn't require an upgrade when your data protocols change or speeds increase.
- Works with 9-/125-micron single-mode fiber cable.
- Universal 100-240-VAC power supply.
This type of switch is reliable because it uses a micro-mirror instead of electronics to route data signals from one fiber optic port to the next. And unlike conventional electronic switches there are no complex and vulnerable electronic circuits to monitor and protect from intrusion component failure or interference. Plus the optical mirror movement on this latching switch maintains the selected position even when there's a power failure.
Product color
Black
Product Condition
New
Product Name
Fiber Optic A/B Desktop Switch - Latching with SC Single-Mode Connectors
Product Type
Fiber Optic Switchbox
TAA Compliant
Yes
