CyberPower MBP15A6 120 VAC 15A Maintenance Bypass PDU
CyberPower MBP15A6 120 VAC 15A Maintenance Bypass PDU - 6 Outlets, 6 ft, 2 x NEMA 5-15P, Horizontal, 1U, 3YR Warranty
| $225.68 |
- Two attached 5-15P PDU input cords connect to separate Utility and UPS power sources, (6) NEMA 5-15R output connections
- Manual transfer switch controls PDU input power source
- Bypass PDU supports replacement of standard UPS systems for maintenance with no interruption of connected equipment
- 100-120V AC - 15A electrical capacity
- Rugged, industrial-grade metal housing, 1U Rackmount with mounting hardware
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64676
Item:
MBP15A6
UPC Code:
649532614592
Our Part #
9GM097
Condition
New
$225.68EA
Availability
Only 3 Left In Stock
Product description
CyberPower MBP15A6 120 VAC 15A Maintenance Bypass PDU - 6 Outlets, 6 ft, 2 x NEMA 5-15P, Horizontal, 1U, 3YR Warranty
6 Outlets, 6 ft, 2 x NEMA 5-15P, Horizontal, 1U, 3YR Warranty
Specifications
PDU Type
Hot-swappable
Phase
Single Phase
Plug/Connector Detail
2 x NEMA 5-15P
Receptacle Detail
6 x NEMA 5-15R
UPC Alternates
649532614592 818240617984
Additional Information
- Status Indicators: Active Power Sources
- Utility Input Cord Length: 6ft
- UPS Input Cord Length: 3ft
- Operating Temperature: 32? to 104? ( 0? to 40?)
- Operating Relative Humidity: 0 to 90% Non-Condensing
Brand Name
CyberPower
Certifications & Standards
- cUL
- UL1778
- UL60950_1
Cord Length
6 ft
Country of origin
China
Depth
3"
Energy Star
No
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
2"
Input current
15 A
Input voltage
120 V AC
Input Voltage Range
100 V AC - 125 V AC
Limited Warranty
3 Year
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
MBP15A6
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information

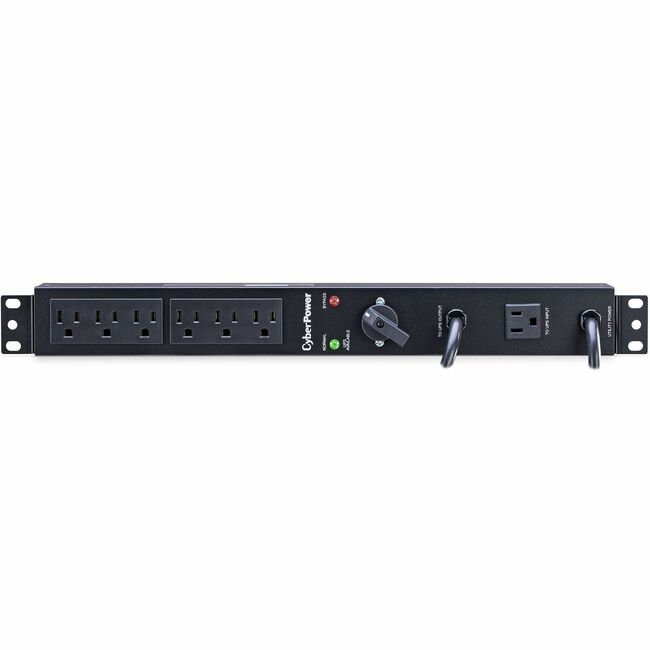

The CyberPower MBP15A6 a 6-outlet (rear) 1U Maintenance Bypass Power Distribution Unit (MBP PDU) provides 100-120 VAC 15A output (derated to 12A) to 6 NEMA 5-15R receptacles. Designed for datacenters and other electrically demanding applications the MBP15A6 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of the connected equipment when performing maintenance replacing batteries or installing a new UPS.
A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP15A6 through a dedicated NEMA 5-15R separate from the outlets for connected devices. When the switch on the front of the MBP15A6 is turned from Normal to Bypass or from Bypass to Normal the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active.
Rugged industrial-grade metal housing protects the MBP15A6. With a 1U form factor this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP15A6 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product.
Power DistributionDelivers AC power to servers equipment and connected devices via a power distribution unit.
Maintenance Bypass
Qualified personnel can use the bypass feature to disconnect the PDU from the UPS without disrupting power to connected equipment. This feature allows connected equipment to operate seamlessly during maintenance periods battery replacement or UPS installation.
Manual Bypass Switch
When the Manual Bypass Switch is turned to Normal connected equipment is supplied by UPS output. When the Manual Bypass Switch is turned to Bypass connected equipment is supplied by utility power.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices.
1U Form Factor & Mounting Hardware
The 1U form factor is made to be mounted in a standard server rack. Mounting hardware allows the PDU to be connected to a UPS for tower configurations.
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU 6-ft. utility cord 3.3-ft. UPS cord 2 Rackmount Brackets 4 Flat Head Screws M4X8L 4 Pan Head Screws M5X12L User Manual Registration Card
Mount Type
Rack-mountable
Output voltage
20 V AC
Package Contents
- Maintenance Bypass MBP15A6
- 6-ft. utility cord
- 3.3-ft. UPS cord
- 2 x Rackmount Brackets
- 4 x Flat Head Screws M4X8L
- 4 x Pan Head Screws M5X12L
- User Manual
- Registration Card
Plug/Connector Type
NEMA 5-15P
Product Name
Maintenance Bypass MBP15A6
Product Series
Maintenance Bypass
Product Type
PDU
Rack Height
1U
Receptacle Type
NEMA 5-15R
Weight (Approximate)
3.50 lb
Width
17"
