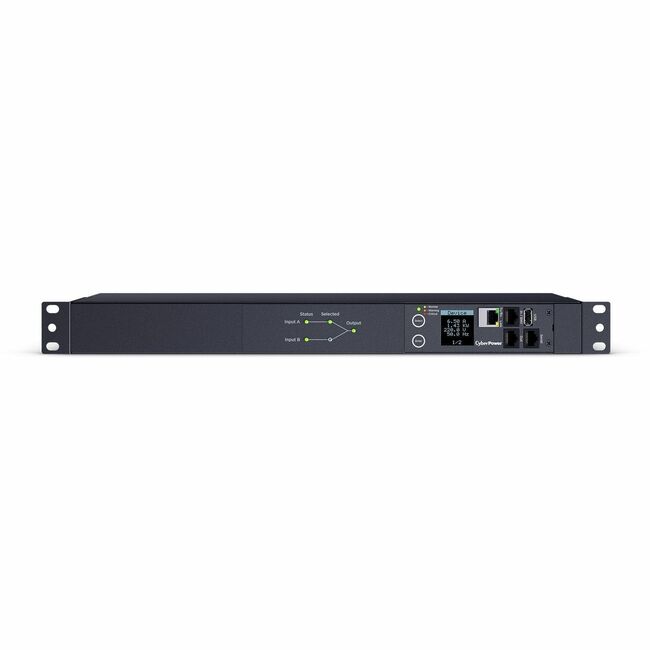

CyberPower Switched ATS PDU PDU44004 12-Outlets PDU
CyberPower Switched ATS PDU PDU44004 12-Outlets PDU - Switched - IEC 60320 C14 - 12 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
| $801.04 | Retail $882.08 |
- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 15A (Derated to 12A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x IEC-320 C14
- Outlets: 12 x IEC-320 C13
- Size: 1U Rackmount
- Warranty: 3 year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
65092
Item:
PDU44004
UPC Code:
649532933341
Our Part #
01FL32
Condition
New
$801.04EA
$882.08
$882.08
Availability
Currently out of stock
Product description
CyberPower Switched ATS PDU PDU44004 12-Outlets PDU - Switched - IEC 60320 C14 - 12 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Switched - IEC 60320 C14 - 12 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Specifications
Mounting Orientation
Horizontal
PDU Type
Switched
Phase
Single Phase
Plug/Connector Detail
2 x IEC 60320 C14
Receptacle Detail
12 x IEC 60320 C13
UPC Alternates
649532933341
Additional Information
- Input Frequency Range : 50 Hz - 60 Hz
- Nominal Input Voltage : 240 - 200 VAC
- Phase : Single Phase
- Nominal Output Voltage : 240 - 200 VAC
- Outlet Banks : 1
- Outlets - Total : 12
- Overload Protection : None
- Power Source Transfer Time : 2-7 ms
- Source Failure Detection Time : 2-3 ms
- Total Transfer Time : <10 ms
- Environmental Sensor : Optional via RJ45
- Hardware Connection Port : Ethernet (RJ45)
- LCD : Multifunction LCD
- LED Indicators : Source Status
- Modular Expandability (Cascading) : Yes via RJ45
- Outlet switching : Yes
- Upgradeable firmware : Yes
- Cord Retention Tray/Cord Organizers : Yes
- External Site Ground Pin : Yes
- Material of Construction : Metal
- Operating Elevation : 0 - 13123 ft (0 - 4000 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 113 °F (0 - 45 °C)
- Storage Elevation : 0 - 49213 ft (0 - 14999 m)
- Storage Temperature : 5 - 131 °F (-15 - 55 °C)
- Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA
Brand Name
CyberPower
Country of origin
China
Depth
8.5"
Design
Modular
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
15 A
Input voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC
Limited Warranty
3 Year
Management
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
PDU44004
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
Ensure continued operation of critical devices with the CyberPower PDU44004 Switched ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally this unit offers real time remote and local monitoring and outlet management.
The PDU44004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B) and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color built-in web interface and power event notifications. The CyberPower PDU44004 is protected by a three-year limited warranty.
Mount Type
Rack-mountable
Plug/Connector Type
IEC 60320 C14
Product color
Black
Product Name
Switched ATS PDU PDU44004 12-Outlets PDU
Product Series
Switched ATS PDU
Product Type
PDU
Rack Height
1U
Receptacle Type
IEC 60320 C13
Weight (Approximate)
10.01 lb
Width
17.1"
