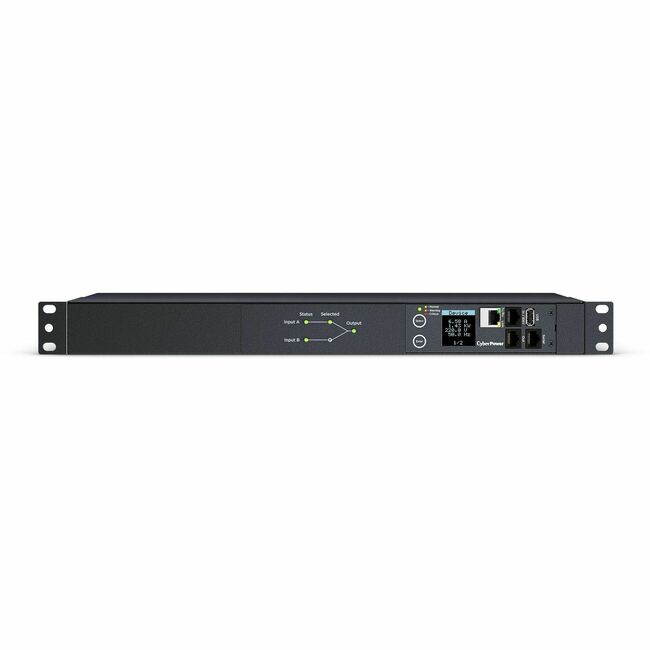

CyberPower Switched ATS PDU PDU44005 10-Outlets PDU
CyberPower Switched ATS PDU PDU44005 10-Outlets PDU - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
| $863.72 | Retail $1,050.00 |
- Automated notifications: Email, SMS Text, and SNMP Trap
- Phase: Single
- Amps: 20A (Derated to 16A)
- Volts: 200-240V
- Frequency: 50/60Hz
- Plug type: 2 x IEC-320 C20
- Outlets: 8 x IEC-320 C13, 2 x IEC-320 C19
- Size: 1U Rackmount
- Warranty: 3 year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
65138
Item:
PDU44005
UPC Code:
649532933365
Our Part #
01FL36
Condition
New
$863.72EA
$1,050.00
$1,050.00
Availability
Currently out of stock
You may be also interested
Product description
CyberPower Switched ATS PDU PDU44005 10-Outlets PDU - Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Switched - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - 1U - Horizontal - Rack-mountable
Specifications
Mounting Orientation
Horizontal
PDU Type
Switched
Phase
Single Phase
Plug/Connector Detail
2 x IEC 60320 C20
Receptacle Detail
2 x IEC 60320 C19
Receptacle Detail
8 x IEC 60320 C13
UPC Alternates
649532933365
Additional Information
- Cord Length : 10 ft (3.0 m)
- Derated Input Current : 16 A
- Input Frequency Range : 50 Hz - 60 Hz
- Input Overload Protection : 20A x 2
- Plug Style : Straight (Socket)
- Nominal Output Voltage : 200 - 240 VAC
- Outlet Banks : 1
- Outlets - Total : 10
- Overload Protection : None
- Power Source Transfer Time : 2-7 ms
- Source Failure Detection Time : 2-3 ms
- Total Transfer Time : <10 ms
- Environmental Sensor : Optional via RJ45
- Hardware Connection Port : Ethernet (RJ45)
- LCD : Multifunction LCD
- LED Indicators : Source Status
- Modular Expandability (Cascading) : Yes via RJ45
- Outlet switching : Yes
- SNMP / HTTP Remote Monitoring : IPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
- Upgradeable firmware : Yes
- Cord Retention Tray/Cord Organizers : Yes
- External Site Ground Pin : Yes
- Form Factors Supported : 1U Rackmount
- Material of Construction : Metal
- Rack Height : 1U
- Style : Rackmount
- Operating Elevation : 0 - 13123 ft (0 - 4000 m)
- Operating Relative Humidity : 0 - 95 % (non-condensing)
- Operating Temperature : 32 - 113 °F (0 - 45 °C)
- Storage Elevation : 0 - 49213 ft (0 - 14999 m)
- Storage Temperature : 5 - 131 °F (-15 - 55 °C)
Brand Name
CyberPower
Country of origin
China
Depth
8.5"
Design
Modular
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.8"
Input current
20 A
Input voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC
Limited Warranty
3 Year
Management
- IPv4
- TCP/IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
PDU44005
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
Ensure continued operation of critical devices with the CyberPower PDU44005 Switched ATS PDU. Ideal for data centers and network closets this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds or if power fails the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally this unit offers real time remote and local monitoring and outlet management.
The PDU44005 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual IEC C20 power cords are plugged into separate power sources (A and B) and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color built-in web interface and power event notifications. The CyberPower PDU44005 is protected by a three-year limited warranty.
Mount Type
Rack-mountable
Plug/Connector Type
IEC 60320 C20
Product color
Black
Product Name
Switched ATS PDU PDU44005 10-Outlets PDU
Product Series
Switched ATS PDU
Product Type
PDU
Rack Height
1U
Receptacle Type
IEC 60320 C19
Receptacle Type
IEC 60320 C13
Weight (Approximate)
8.29 lb
Width
17.1"
