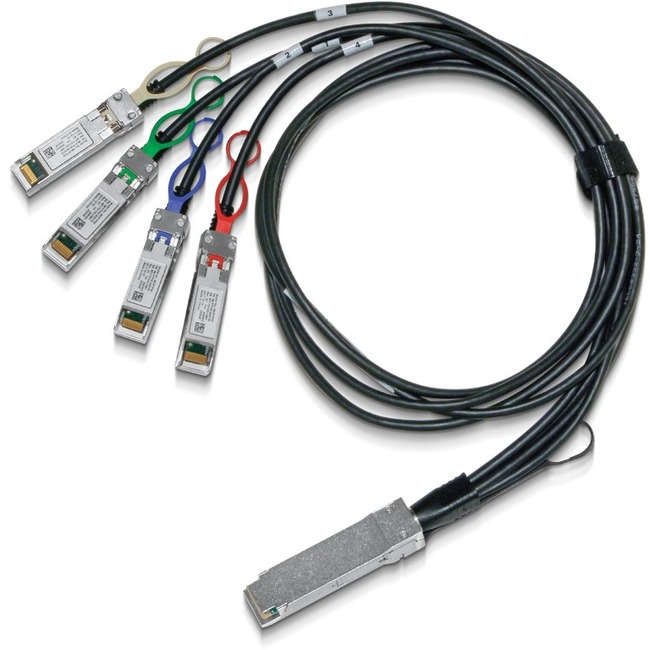

Mellanox 100GbE to 4x25GbE (QSFP28 to 4xSFP28) Direct Attach Copper Splitter Cable
Mellanox 100GbE to 4x25GbE (QSFP28 to 4xSFP28) Direct Attach Copper Splitter Cable - 9.84 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Male Network - Second End: 4 x SFP28 Male Network - 100 Gbit/s - Splitter Cable - 30 AWG
| $196.03 | Retail $314.00 |
- Allows you to access all of the networked data, swiftly and securely
- Features QSFP28/SFP28 cable type
- Features Passive
- 4 x SFP28 Male Network establishes rapid connection with a network device
By:
Mellanox
Manufacturer:
Mellanox Technologies Ltd
Product ID:
69194
Item:
MCP7F00-A003R30L
UPC Code:
997249201049
Our Part #
5GM188
Condition
New
$196.03EA
$314.00
$314.00
Availability
Currently out of stock
Product description
Mellanox 100GbE to 4x25GbE (QSFP28 to 4xSFP28) Direct Attach Copper Splitter Cable - 9.84 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Male Network - Second End: 4 x SFP28 Male Network - 100 Gbit/s - Splitter Cable - 30 AWG
9.84 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Male Network - Second End: 4 x SFP28 Male Network - 100 Gbit/s - Splitter Cable - 30 AWG
Specifications
Jacket Material
Low Smoke Zero Halogen
Product Material
Copper
UPC Alternates
997249201049
American Wire Gauge
30 AWG
Brand Name
Mellanox
Cable Characteristic
Splitter Cable
Cable length
9.84 ft
Cable type
QSFP28/SFP28
Connector on First End
1 x QSFP28 Male Network
Connector on First End
QSFP28 Male Network
Connector on Second End
4 x SFP28 Male Network
Connector on Second End
SFP28 Male Network
Data transfer rate
100 Gbit/s
Device Supported
Network Device
Features
Halogen Free
Features
Passive
Features
Lead-free
Manufacturer
Mellanox Technologies Ltd
Manufacturer Part Number
MCP7F00-A003R30L
Manufacturer Website Address
http://www.mellanox.com
Marketing Information
Mellanox MCP7F00-A0xxRyyz DAC splitter cables are a high speed cost-effective 100GbE to 4 x 25GbE Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
MCP7F00-A0xxRyyz cables are compliant with SFF-8402 SFP28 and SFF-8665 QSFP28 standard specifications and provide connectivity between system units with a QSFP28 port on one side and up to four different SFP28 ports on the other. The cable connects data signals from each of the 4 copper pairs on the QSFP28 end to the single pair of each of the SFP28 ends. Each QSFP28/SFP28 port comprises an EEPROM providing product information which can be read by the host system.
MCP7F00-A0xxRyyz cables up to 2m support IEEE 802.3by CA-25G-N (Cable Assembly No-FEC) with low latency. Cables from 3m to 5m support IEEE 802.by CA-25G-L (Cable Assembly Long) with RS-FEC (Reed Solomon Forward Error Correction) enabled. For 2.5m and 3m cables there are two versions supporting either CA-25G-N or CA-25G-L.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Product Line
LinkX
Product Name
100GbE to 4x25GbE (QSFP28 to 4xSFP28) Direct Attach Copper Splitter Cable
Product Type
Network Cable
