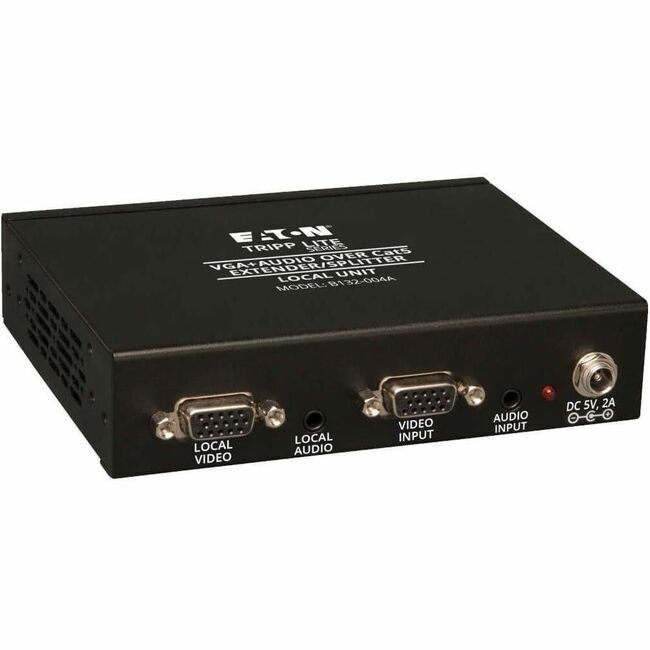

Tripp Lite 4-Port VGA + Audio over Cat5 Cat6 Video Extender Splitter Transmitter
Tripp Lite 4-Port VGA + Audio over Cat5 Cat6 Video Extender Splitter Transmitter - 1 Input Device - 4 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
| $157.39 | Retail $225.60 |
- Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
- EDID copy feature ensures optimal display compatibility
- Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- Can further expand the range and number of monitors by adding B132-110A repeaters
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
72689
Item:
B132-004A-2
UPC Code:
012304133209
Our Part #
VR5795
Condition
New
$157.39EA
$225.60
$225.60
Availability
Only 6 Left In Stock
Product description
Tripp Lite 4-Port VGA + Audio over Cat5 Cat6 Video Extender Splitter Transmitter - 1 Input Device - 4 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
1 Input Device - 4 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
Specifications
For Country/Region
Europe
For Country/Region
United Kingdom
Transmitter Depth
3.90"
Transmitter Height
1.20"
Transmitter Weight (Approximate)
13.60 oz
Transmitter Width
5.30"
UPC Alternates
012304133209 037332178435 059045603387 818241457855
Brand Name
Tripp Lite
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Form factor
Wall Mountable
Form factor
Rack-mountable
Form factor
Pole-mountable
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B132-004A-2
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local 4 remote). Increase the number of displays to up to 25 (1 local 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit you can extend a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. Support for video resolutions up to 1920 x 1440 (60Hz). A 1024 x 768 (60Hz) signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Splits a single VGA and Audio signal into 5 (1 local 4 remote)
- Increase the number of displays to up to 25 (1 local 24 remote) by daisy-chaining up to six B132-004A-2 units together
- A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
- Support for video resolutions up to 1920 x 1440 (60Hz)
- Extends a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- EDID copy feature ensures optimal display compatibility
- The range and number of monitors can be further expanded by adding B132-110A repeater units
- Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a monitor at each location
- A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
- For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K
- Includes mounting hardwarethat allows unit to be wallmounted rackmounted or pole mounted.
- Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
- Ideal for digital signage situations such as retail schools churches etc.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Maximum Operating Distance
1000 ft
Maximum Video Resolution
1920 x 1440
Media Type Supported
Twisted Pair
Microphone
Yes
Number of Network (RJ-45) Ports
4
Number of VGA Outputs
1
Package Contents
- 4 Port Extender/Splitter Local (Transmitter) Unit
- 1 ft. VGA Daisychain Cable
- Mounting Hardware
- External Power Supply (Input: 100-240V)
- Owner's Manual
Product color
Black
Product Name
4 Port Extender/Splitter Local (Transmitter) Unit
Product Type
Video Extender Transmitter
Twisted Pair Cable Standard
Category 6
