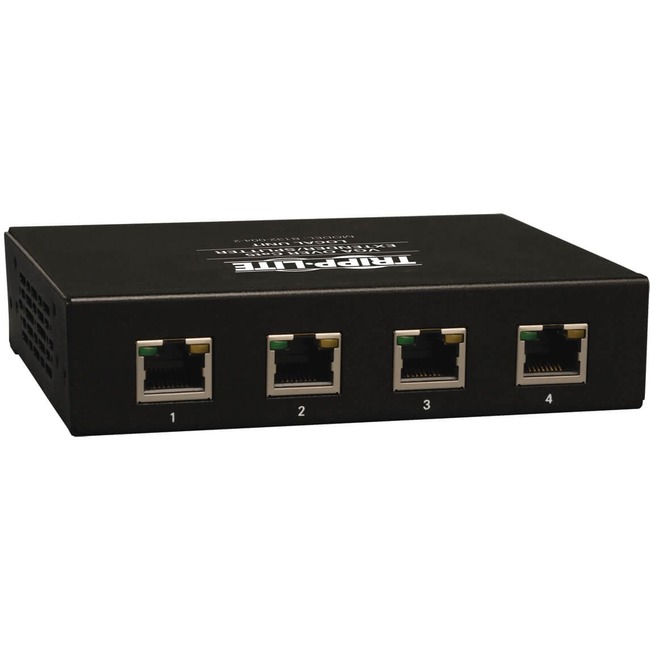

Tripp Lite VGA over Cat5/Cat6 Video Extender 4-Port Transmitter Splitter HD15 RJ45 TAA
Tripp Lite VGA over Cat5/Cat6 Video Extender 4-Port Transmitter Splitter HD15 RJ45 TAA - 1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
| $78.35 | Retail $219.20 |
- Splits a single VGA signal into 5 (1 local, 4 remote)
- EDID copy feature ensures optimal display compatibility
- Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- Can further expand the range and number of monitors by adding B132-110 repeaters
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
76557
Item:
B132-004-2
UPC Code:
037332178442
Our Part #
TX0628
Condition
New
$78.35EA
$219.20
$219.20
Availability
Only 30 Left In Stock
You may be also interested
Product description
Tripp Lite VGA over Cat5/Cat6 Video Extender 4-Port Transmitter Splitter HD15 RJ45 TAA - 1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
1 Input Device - 5 Output Device - 1000 ft Range - 4 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
Specifications
Number of Output Devices Supported
5
Transmitter Depth
3.90"
Transmitter Height
1.20"
Transmitter Weight (Approximate)
13.60 oz
Transmitter Width
5.30"
UPC Alternates
037332178442
Brand Name
Tripp Lite
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Pole-mountable
Form factor
Wall Mountable
Form factor
Rack-mountable
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B132-004-2
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's B132-004-2 allows you to split a single VGA signal into 5 (1 local 4 remote). Increase the number of displays to up to 25 (1 local 24 remote) by daisy-chaining up to six B132-004-2 units together. Along with a B132-100-1 or B132-100-WP-1 remote receiver unit you can extend a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).
The range and number of monitors can be further expanded by adding B132-110A (Video Only) repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
The range and number of monitors can be further expanded by adding B132-110A (Video Only) repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Splits a single VGA signal into 5 (1 local 4 remote)
- Increase the number of displays to up to 25 (1 local 24 remote) by daisychaining up to six B132-004-2 units together
- A B132-100-1 or B132-100-WP-1 remote receiver unit is required for each connected monitor
- Extends a 1920 x 1440 (60Hz) signal up to 500 ft. or a 1024 x 768 (60Hz) signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
- Can further expand the range and number of monitors by adding B132-110A (Video Only) repeaters
- EDID copy feature ensures optimal display compatibility
- Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver) with a monitor at each location
- A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1000 ft. from the first repeater in the chain to the last receiver.
- For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K
- Includes mounting hardwarethat allows unit to be wallmounted rackmounted or pole mounted.
- Up to three B132-004-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
- Ideal for digital signage situations such as retail schools churches etc.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Maximum Operating Distance
1000 ft
Maximum Video Resolution
1920 x 1440
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
4
Number of VGA Outputs
1
Package Contents
- VGA over Cat5 Extender 4-Port Transmitter
- 1 ft. VGA daisychain cable
- Mounting hardware
- External Power Supply (Input: 100-240V 50/60Hz 1.5A Output: 12.6V 3A)
- Owner's Manual
Product color
Black
Product Name
4 Port Extender/Splitter Local (Transmitter) Unit
Product Type
Video Extender Transmitter
Twisted Pair Cable Standard
Category 6
