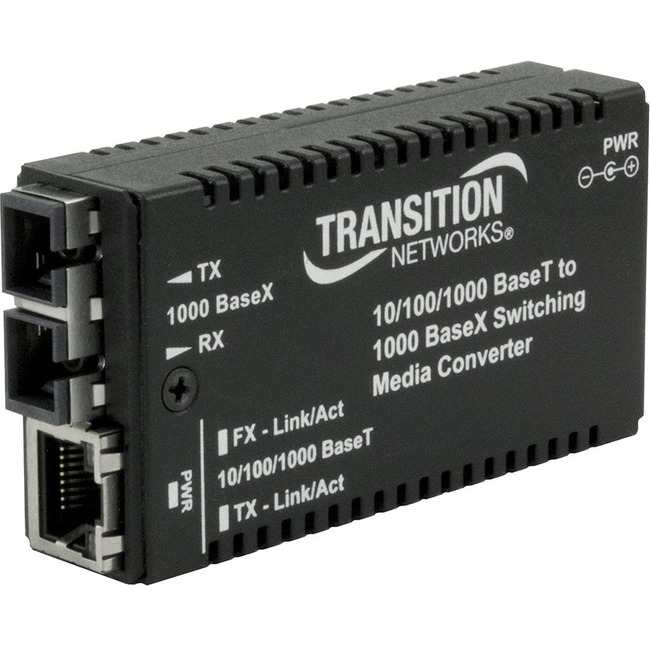

Transition Networks Mini Gigabit Ethernet Media Converter
Transition Networks Mini Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Wall Mountable
| $323.46 | Retail $413.00 |
- Unit & Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Active Link Pass Through
- Automatic Link Restoration
- Space saving design
- Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
- Jumbo Frame (up to 10,240 Bytes)
- USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
79951
Item:
M/GE-PSW-SX-01(LC)NA
UPC Code:
648177042241
Our Part #
5KU900
Condition
New
$323.46EA
$413.00
$413.00
Availability
Only 18 Left In Stock
Product description
Transition Networks Mini Gigabit Ethernet Media Converter - 1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Wall Mountable
1 x Network (RJ-45) - 1 x LC Ports - DuplexLC Port - Multi-mode - Gigabit Ethernet - 1000Base-SX, 10/100/1000Base-T - Wall Mountable
Specifications
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Standard
50/125 µm
Fiber Optic Cable Standard
62.5/125 µm
Fiber Optic Wavelength
850 nm
LC Port Type
Duplex
Maximum Distance Supported
1804.46 ft
UPC Alternates
648177042241
Brand Name
Transition Networks
Depth
3.3"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Form factor
Wall Mountable
Height
0.9"
Limited Warranty
Lifetime
Manufacturer
Transition Networks Inc
Manufacturer Part Number
M/GE-PSW-SX-01(LC)NA
Manufacturer Website Address
http://www.transition.com
Marketing Information
The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective entry-level media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration deployments are just plug-and-play and with its small size it is ideal for locations where space is limited. Operating at Layer 2 the data link layer this converter not only converts copper to fiber it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-SX
Network Technology
10/100/1000Base-T
Number of Network (RJ-45) Ports
1
Package Contents
- Mini Gigabit Ethernet Media Converter
- Power Supply
Power source
AC Adapter
Product Model
M/GE-PSW-SX-01(LC)
Product Name
Mini Gigabit Ethernet Media Converter
Product Series
M/GE-PSW
Product Type
Transceiver/Media Converter
Total Number of Ports
2
Weight (Approximate)
2 lb
Width
1.8"
