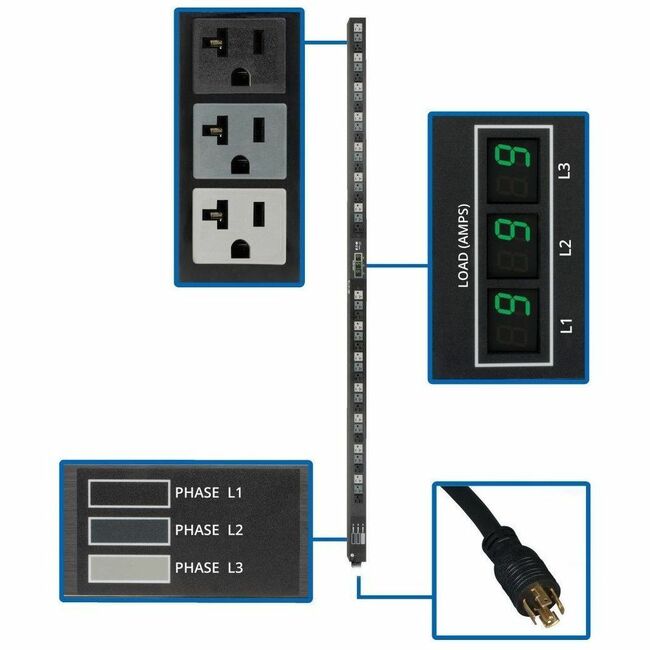

Tripp Lite PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM
Tripp Lite PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM - 42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
| $344.65 | Retail $750.68 |
- Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount
- Reports load level per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
- 42 NEMA 5-15/20R outlets (120V), Toolless button-mount installation; cord retention brackets included
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
83750
Item:
PDU3MV6L2120LV
UPC Code:
037332163899
Our Part #
PK7846
Condition
New
$344.65EA
$750.68
$750.68
Availability
Only 11 Left In Stock
Product description
Tripp Lite PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM - 42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
42 x NEMA 5-15/20R - 5.70 kVA - Vertical Rackmount, Toolless-mount
Specifications
Mounting Orientation
Vertical
Power Rating (Watt)
5700 W
Receptacle Detail
42 x NEMA 5-15/20R
UPC Alternates
037332163899
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
2.2"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
70"
Input voltage
230 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDU3MV6L2120LV
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Mount Type
Rack-mountable
Output voltage
120 V AC
Package Contents
- 3-Phase Metered PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- User Manual
Plug/Connector Type
NEMA L21-20P
Product Name
3-Phase Metered PDU
Product Series
Metered
Product Type
PDU
Receptacle Type
NEMA 5-15/20R
Weight (Approximate)
12.57 lb
Width
1.9"
