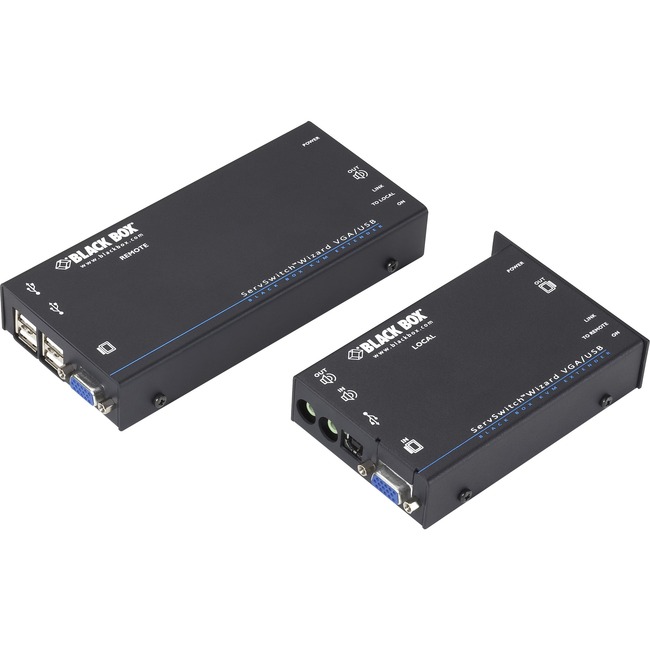

Black Box ServSwitch Wizard USB KVM Extender With Audio
Black Box ServSwitch Wizard USB KVM Extender With Audio - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft Range - 1900 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 5 x USB - 2 x VGA - Rack-mountable, Desktop
| $1,129.39 | Retail $1,288.88 |
- VGA Video resolution 1600x1200
- Extended profile DDC EDID ensures optimal video with high-performance display devices
- Transparent USB 2.0 support
- Local VGA and stereo audio feedthrough
- Dual-video monitoring at the CPU
- Automatic cut-out fuses protect against power surges
- Rackmount multiple local and remote units in the optional chassis
- Remote unit includes a built-in 4-port USB hub
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
93485
Item:
ACU5050A-R2
UPC Code:
822088065937
Our Part #
43211603
Condition
New
$1,129.39EA
$1,288.88
$1,288.88
Availability
Only 2 Left In Stock
Product description
Black Box ServSwitch Wizard USB KVM Extender With Audio - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft Range - 1900 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 5 x USB - 2 x VGA - Rack-mountable, Desktop
1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft Range - 1900 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 5 x USB - 2 x VGA - Rack-mountable, Desktop
Specifications
Transmitter Depth
6.40"
Transmitter Height
1"
Transmitter Weight (Approximate)
1 lb
Transmitter Width
2.90"
UPC Alternates
082208806592 783555116487 818213973871 818275178597 818279130041 822088065937
Brand Name
Black Box
Certifications & Standards
CE
Connectivity technology
Wired
Country of origin
United Kingdom
Environmental Certification
RoHS
Environmental Certification
WEEE
Form factor
Rack-mountable
Form factor
Desktop
Input voltage
5 V DC
Limited Warranty
2 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
ACU5050A-R2
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The power of transparent USB
The ServSwitch Wizard™ USB SRX KVM Extender single-video from Black Box combines VGA USB 1.1 or USB 2.0 and audio and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.
DDC EDID read and store support
Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.
Small form factor
The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U.
Local access
The local unit features audio and VGA feed-through giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.
Dual-user configuration
With two single-video units you can connect two workstations with keyboards monitors and mice to one CPU tower. Two users can use local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn't need to be monitored simultaneously by two users.
Maximum Operating Distance
1000 ft
Maximum Video Resolution
1900 x 1200
Microphone
Yes
Number of Computers Supported
1
Number of Network (RJ-45) Ports
4
Number of USB Ports
5
Number of VGA Ports
2
Package Contents
- 1 x Transmitter
- 1 x Receiver
- 1 x VGA M/M cable (all pins) 1.8m (6 ft.)
- 1 x 3.5mm audio cable 3m (10 ft.)
- 1 x USB Type A B cable 1.8m (6 ft.)
- 2 x sets of rubber feet
- 1 x 5VDC 2.5Amp external power supply
Product Line
ServSwitch
Product Name
ServSwitch Wizard USB KVM Extender With Audio
Product Type
KVM Console/Extender
