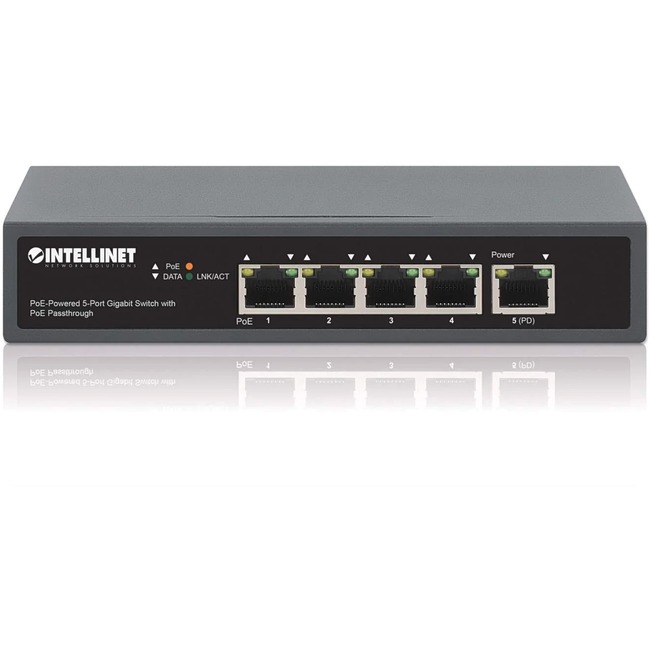

Intellinet PoE-Powered 5-Port Gigabit Switch with PoE Passthrough
Intellinet PoE-Powered 5-Port Gigabit Switch with PoE Passthrough - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 72 W Power Consumption - 65 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Desktop - 3 Year Limited Warranty
| $86.58 | Retail $124.99 |
- Quickly and easily set up a wired network with 5 networking ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Power Adapter power source for required power supply to ensure maximum efficiency
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
By:
Intellinet
Manufacturer:
Intellinet Network Solutions
Product ID:
173425
Item:
561808
UPC Code:
766623561808
Our Part #
43222612
Condition
New
$86.58EA
$124.99
$124.99
Availability
Only 9 Left In Stock
Product description
Intellinet PoE-Powered 5-Port Gigabit Switch with PoE Passthrough - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 72 W Power Consumption - 65 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Desktop - 3 Year Limited Warranty
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 72 W Power Consumption - 65 W PoE Budget - Twisted Pair - PoE Ports - Wall Mountable, Desktop - 3 Year Limited Warranty
Specifications
PoE Budget
65 W
Product Material
Metal
Total Number of Network Ports
5
UPC Alternates
766623561808
Brand Name
Intellinet
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Features
Fanless
Form factor
Wall Mountable
Form factor
Desktop
Frequency
50 Hz
Frequency
60 Hz
Height
1.3"
Input voltage
230 V AC
Input voltage
120 V AC
Layer Supported
2
Length
3.7"
Limited Warranty
3 Year
Manufacturer
Intellinet Network Solutions
Manufacturer Part Number
561808
Manufacturer Website Address
http://www.intellinet-network.com
Marketing Information
Get the most out each Power over Ethernet connection with this PoE passthrough switch
The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports this switch can power up to four wireless LAN access points and bridges VoIP phones or IP video cameras draw its own power from the PoE switch it is connected to and deliver network speeds of up to 1000 Mbps.
Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE) which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af compliant device.
The Perfect Workgroup Switch
When you connect the PD port (port 5) to a PoE injector or switch this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices such as VoIP phones allowing you to realize the full potential of each of the PSE ports in your data center.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
Wall-mount option
For full installation flexibility you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Features:
The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports this switch can power up to four wireless LAN access points and bridges VoIP phones or IP video cameras draw its own power from the PoE switch it is connected to and deliver network speeds of up to 1000 Mbps.
Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices.
Power over Ethernet 802.3bt Compliant
This switch supports the IEEE 802.3bt protocol over four pairs (4PPoE) which allows for a power input up to 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af compliant device.
The Perfect Workgroup Switch
When you connect the PD port (port 5) to a PoE injector or switch this product uses some of the electric current to power itself and passes the available surplus power to up to four PoE edge devices such as VoIP phones allowing you to realize the full potential of each of the PSE ports in your data center.
Eliminate Bottlenecks with Gigabit Speeds
Equipped with five auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports the 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
Wall-mount option
For full installation flexibility you can mount the switch on the wall through its four built-in holes or use the included non-slip rubber feet to place it on a desktop.
Features:
- Supports up to 95 W power input from a PoE injector or switch
- PoE power budget up to 65 watts when using AC power or IEEE 802.3bt via PD input port
- Provides up to four PoE network devices with power and data
- Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
- Can be powered via PoE or the included power adapter
- PoE power budget of 25 W through IEEE 802.3at connection and 10 W through IEEE 802.3af connection
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
- Power output up to 30 watts per port
Media Type Supported
Twisted Pair
Network Technology
10/100/1000Base-T
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.3bt
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.3
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3u
Package Contents
- PoE-Powered 5-Port Gigabit Switch with PoE Passthrough
- Power Adapter
- Power Cable
- 4 x Rubber Feets
- Instructions
Port/Expansion Slot Details
4 x Gigabit Ethernet PPoE
Port/Expansion Slot Details
1 x Gigabit Ethernet PoE+
Power consumption
72 W
Power source
Power Adapter
Product Name
PoE-Powered 5-Port Gigabit Switch with PoE Passthrough
Product Type
Ethernet Switch
Weight (Approximate)
14.11 oz
Width
6.6"
